[PRODUCT_DESCRIPTION]

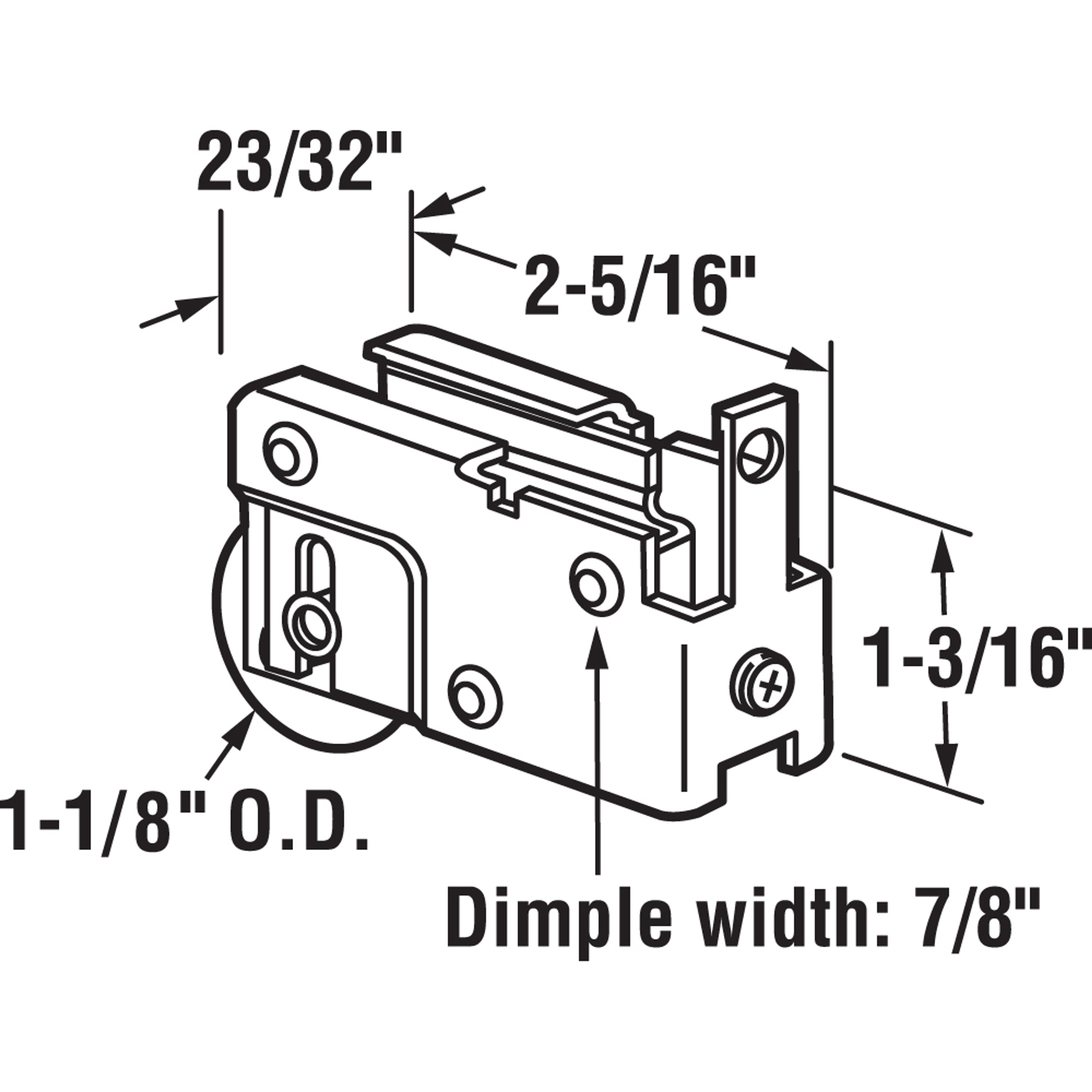

This is a E-tab patio door roller assembly with a 1-1/8 inch concave or grooved steel ball bearing roller. As the corner screw passes through the E-tab it captures the roller assembly and positions it in the door's bottom rail. The housing is 23/32 inch wide and 1-3/16 inch tall with a dimple width of 7/8 inch. Used by Solar Industries and a variety of other patio door manufacturers.

[/PRODUCT_DESCRIPTION]

[SPECIFICATIONS]

As the corner screw passes through the E tab it captures the roller assembly and positions it in the door's bottom rail
Housing is 23/32 inch wide, 1-3/16 inch tall and 2-5/16 inch long

[/SPECIFICATIONS]

[WARRANTY]

Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.

View Installation Instructions

[/WARRANTY]
