This concealed latch and knob set is constructed of diecast zamak and comes in a polished chrome plated finish. The slide latch features an "occupied" or "in-use" exterior indicator that changes from green to red when the latch is engaged, and it displays the green color, or "unoccupied" state, announcing its availability for use when the door is unlocked. Toilet partition knob sets and latches like these are used to replace broken and missing knob sets of concealed latches used in 1 inch thick steel door panel systems, which are designed to provide privacy in restroom partition stalls. This latch is a 3-component piece lock set that features a simple snap-together assembly, without the need of any additional fasteners. This slide latch knob set is used by Metpar and many other restroom partition manufacturers, and it is easy to install. The overall rectangular size of the lock housing measures 1-3/4 inch x 1-1/4 inch, and it features a 7/16 inch bolt throw. The rectangular hole size required for installation of this concealed slide latch is 1-5/8 inch x 1-1/16 inch

[/PRODUCT_DESCRIPTION]

[SPECIFICATIONS]

Diecast zamak construction

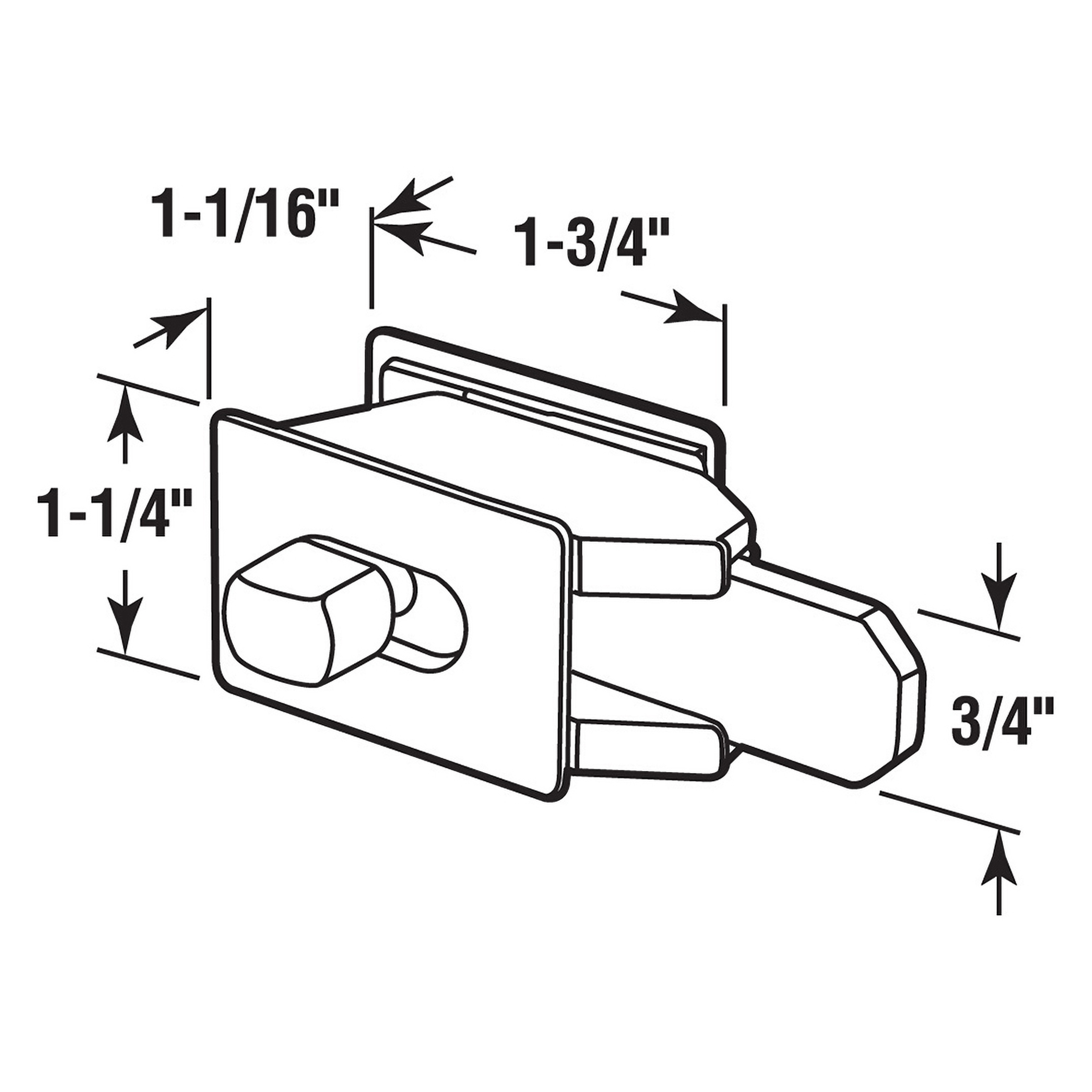

Please refer to the line art drawing and compare with your original item before purchasing

[/SPECIFICATIONS]

[WARRANTY]

Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.

[/WARRANTY]

29:T4b0,[PRODUCT_DESCRIPTION] This concealed latch and knob set is constructed of diecast zamak and comes in a polished chrome plated finish. The slide latch features an "occupied" or "in-use" exterior indicator that changes from green to red when the latch is engaged, and it displays the green

Slide Indicator Latch, 1-5/8 in., Diecast Zamak Construction, Polished Chrome Plated Finish (Single Pack)

Slide Indicator Latch, 1-5/8 in., Diecast Zamak Construction, Polished Chrome Plated Finish (Single Pack)
