[PRODUCT_DESCRIPTION]

This is a F-tab tandem roller assembly with two 1-1/8 inch steel ball bearing rollers. When the corner screw passes through the F- tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The adjustable stamped steel housing is 11/16 inch wide with a flare width of 7/8 inch, 1-1/16 inch tall and 3 inch long. It has a low carriage allowing for easy door removal. Used by Merzon and a variety of other patio door manufacturers.

[/PRODUCT_DESCRIPTION]

[SPECIFICATIONS]

Stamped steel housing and tandem ball bearing rollers
F-tab mounting
Rear adjustment screw
Easy to install

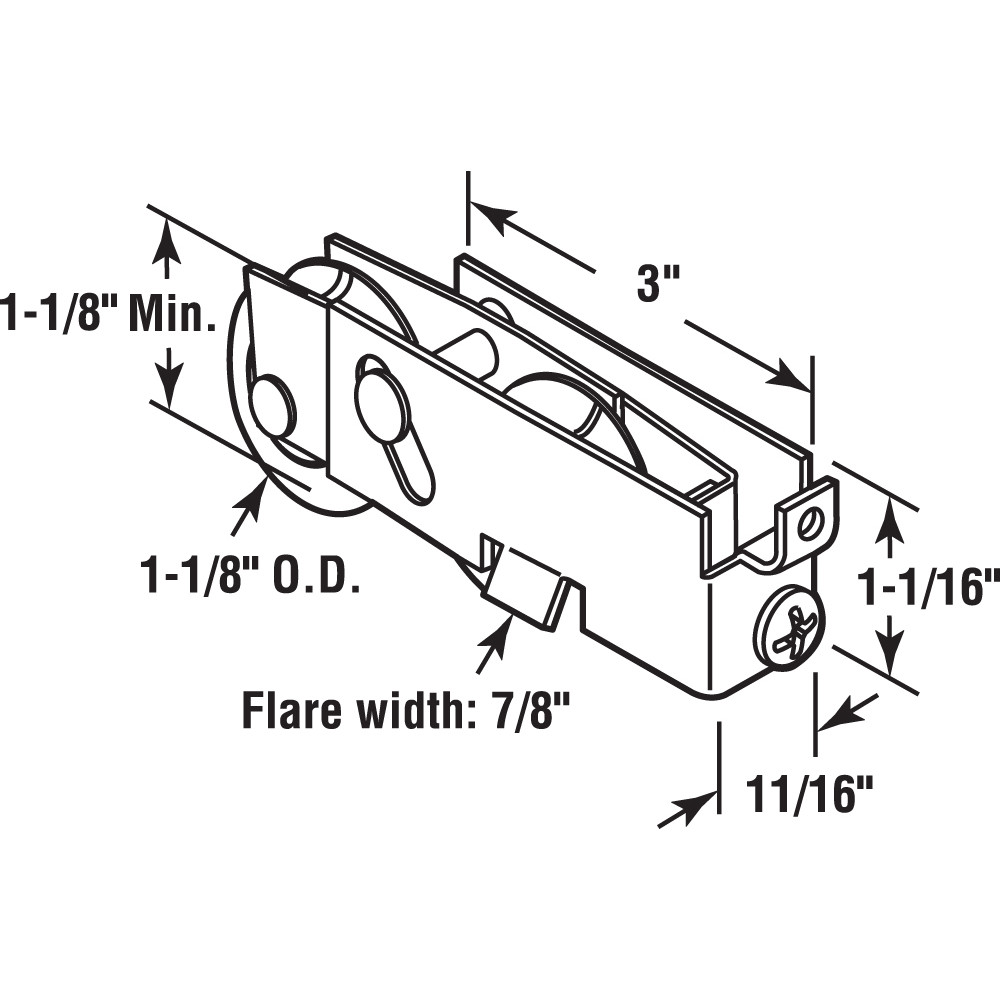

Please refer to the line art drawing and compare with your original item before purchasing

[/SPECIFICATIONS]

[WARRANTY]

Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.

[/WARRANTY]

29:T460,[PRODUCT_DESCRIPTION] This is a F-tab tandem roller assembly with two 1-1/8 inch steel ball bearing rollers. When the corner screw passes through the F- tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The adjustable stamped steel housing is 11/16 inch wide with a flare width of 7/8 inch, 1-1/16 inch tall and 3 inch long. It has a low carriage allowing for easy door removal. Used by Merzon and a variety of other patio door manufacturers. [/PRODUCT_DESCRIPTION] [SPECIFICATIONS] Stamped steel housing and tandem ball bearing rollers F-tab mounting Rear adjustment screw Easy to install Please refer to the line art drawing and compare with your original item before purchasing

1-1/8 in. Steel Ball Bearing Sliding Door Tandem Roller Assembly, for Merzon (Single Pack)

1-1/8 in. Steel Ball Bearing Sliding Door Tandem Roller Assembly, for Merzon (Single Pack)
