28:T585,

[PRODUCT_DESCRIPTION]

This is a K-tab patio door roller assembly with a 1-1/8 inch concave steel ball bearing roller. The T-shaped tab (K-tab) is simply slid up into a T-shaped receptacle in the bottom of the patio door. No screws are required for installation. The housing is 3/4 inch wide and 1-1/4 inch tall with a 7/8 inch dimple width. The dimples secure it within the door's bottom frame. Used by a variety of door manufacturers.

[/PRODUCT_DESCRIPTION]

[SPECIFICATIONS]

Stamped steel housing and roller
Used on metal framed sliding patio doors
Easy to install
A Phillips head screwdriver is required for Installation

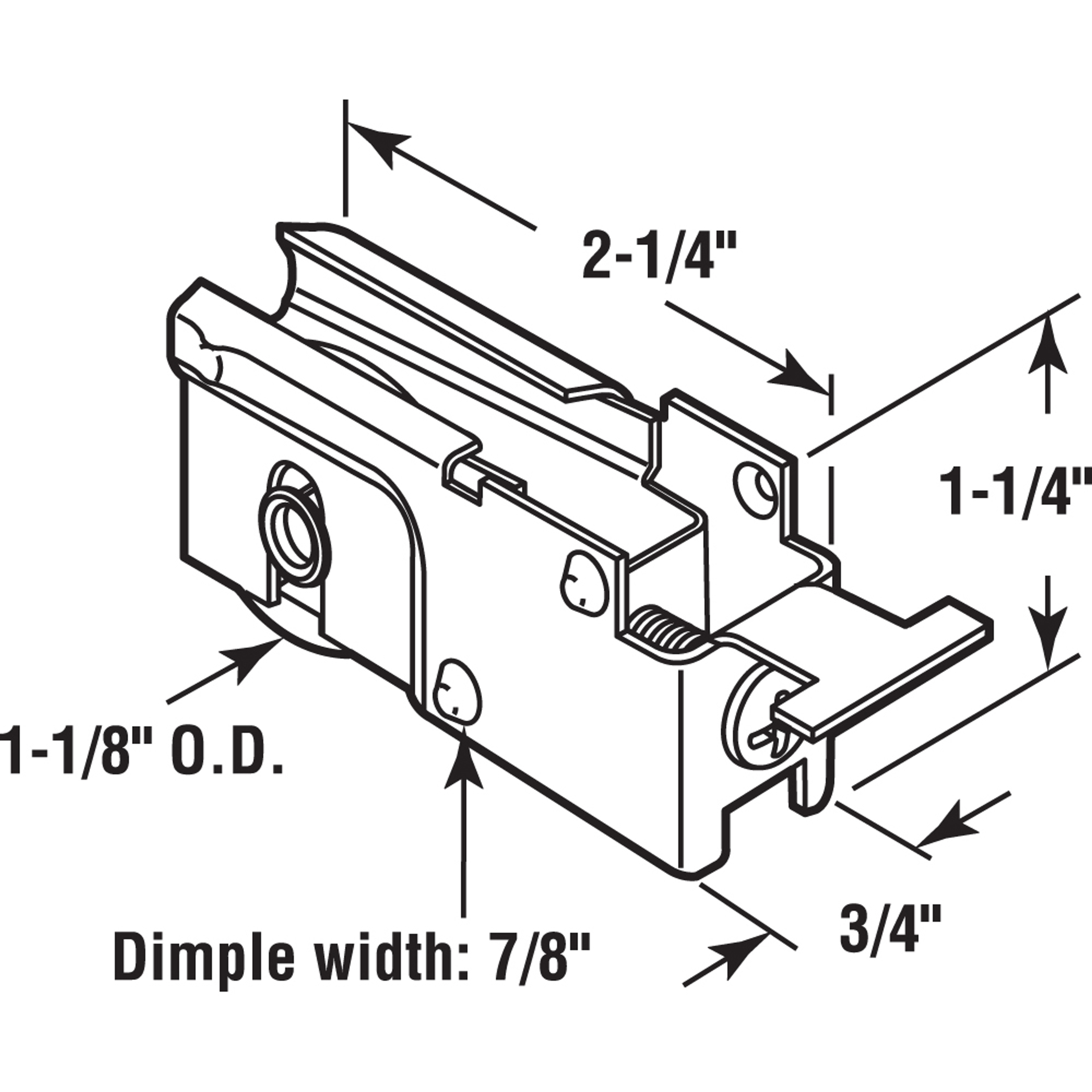

Please refer to the line art drawing and compare with your original item before purchasing

[/SPECIFICATIONS]

[WARRANTY]

Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.

View Installation Instructions

[/WARRANTY]

29:T466,[PRODUCT_DESCRIPTION] This is a K-tab patio door roller assembly with a 1-1/8 inch concave steel ball bearing roller. The T-shaped tab (K-tab) is simply slid up into a T-shaped receptacle in the bottom of the patio door. No screws are required for installation. The housing is 3/4 inch wide and 1-1/4 inch tall with a 7/8 inch dimple width. The dimples secure it within the door's bottom frame. Used by a variety of door manufacturers. [/PRODUCT_DESCRIPTION] [SPECIFICATIONS] Stamped steel housing and roller Used on metal framed sliding patio doors Easy to install A Ph

1-1/8 in. Steel Ball Bearing Sliding Glass Door Roller Assembly (Single Pack)

1-1/8 in. Steel Ball Bearing Sliding Glass Door Roller Assembly (Single Pack)

Product Details

Specifications

Warranties & Manuals
