[PRODUCT_DESCRIPTION]

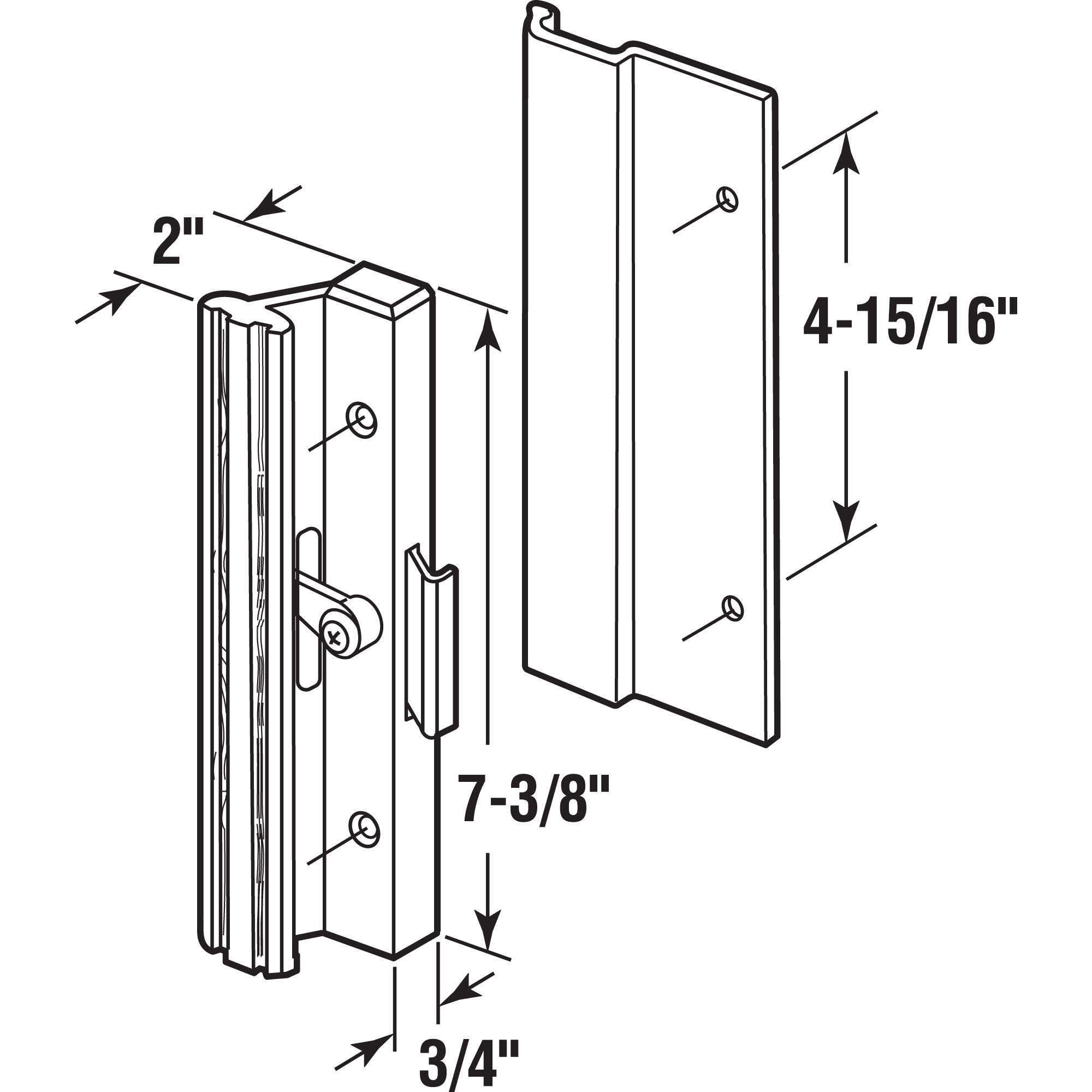

This black patio door handle is a surface mount with clamp latch style. Often found on older style patio doors, it is mounted on the door's inside frame and the clamp latch latches onto an extrusion (astragal) on the jamb. It has 2 inch handle height extruded aluminum inside handle. The clamp has a 1/4 inch profile and 1/2 inch projection when in locked position. The outside handle is a black extruded aluminum low profile non-keyed handle. To key this unit order Prime-Line part E 2071.

[/PRODUCT_DESCRIPTION]

[SPECIFICATIONS]

Used by a variety of sliding patio door manufacturers
Surface mount, clamp style sliding door patio handles
4-15/16 in on hole center mounting
Extruded aluminum painted black
Not a keyed unit, use Prime-Line part E 2071 to make a keyed unit
Mounting hardware included

[/SPECIFICATIONS]

[WARRANTY]

Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.

[/WARRANTY]
