[PRODUCT_DESCRIPTION]

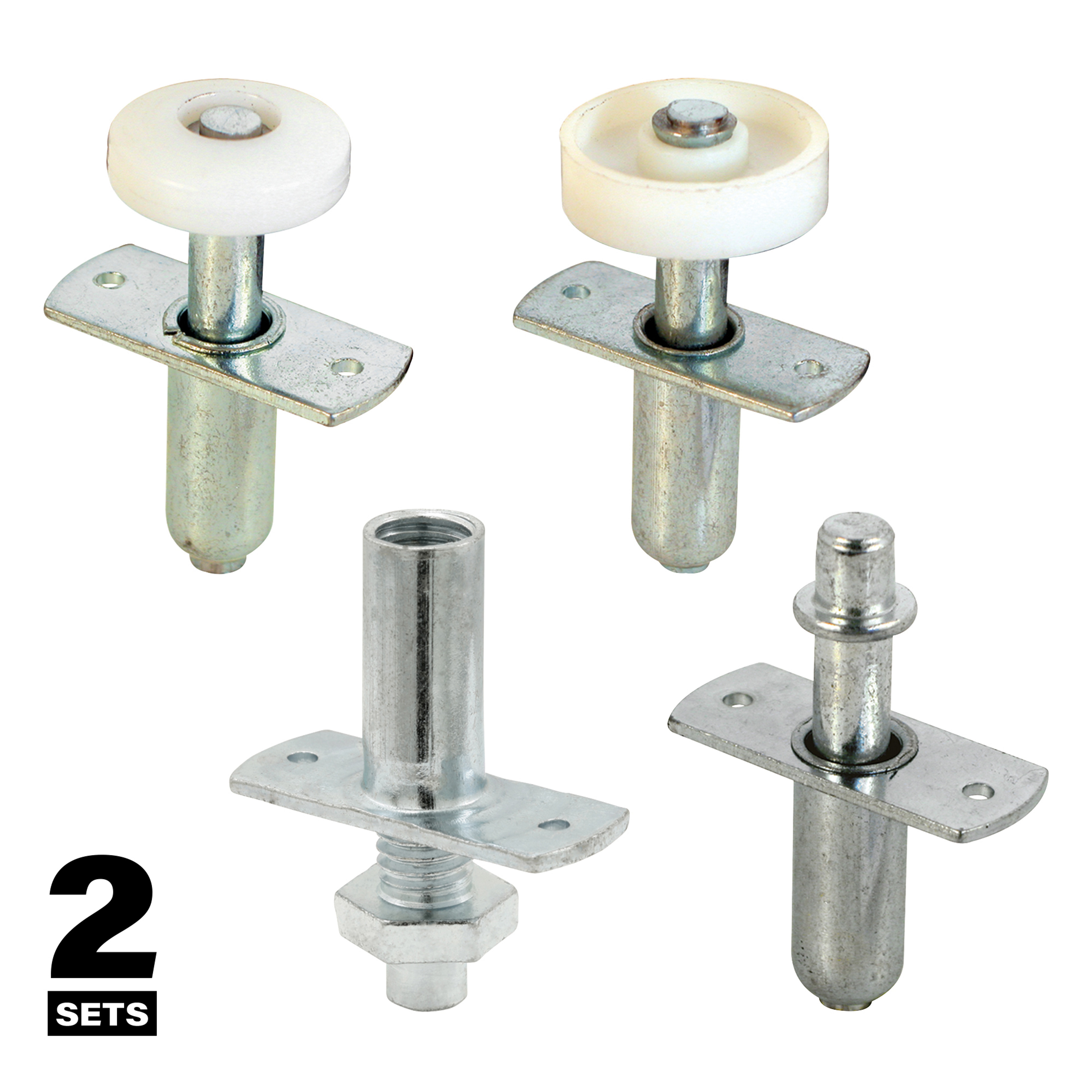

This bi-fold door pivot repair kit is constructed of plastic and steel components and they fit 3/8 inch diameter holes. The kit includes one Prime-Line part N 6611 top roller guide with a 3/4 inch plastic wheel, one Prime-Line part N 6614 top roller guide with a 7/8 inch plastic wheel, one Prime-Line part N 6612 top pivot with a 1/4 inch steel pivot, and one Prime-Line part N 6613 bottom pivot with a 1/4 inch steel pivot. All are nail-down style with nails provided, and all except for the N 6613 bottom pivot are spring-loaded components. These repair parts are used on bi-fold doors made by many manufactures, and they can be used to replace damaged or missing bi-fold hardware to restore the doors to their optimal performance. Use on doors 1 to 1-3/8 inch thick and up to 30 lbs.

[/PRODUCT_DESCRIPTION]

[SPECIFICATIONS]

The fasteners that are suppled are nails intended only for wooden doors, not metal or mirrored doors

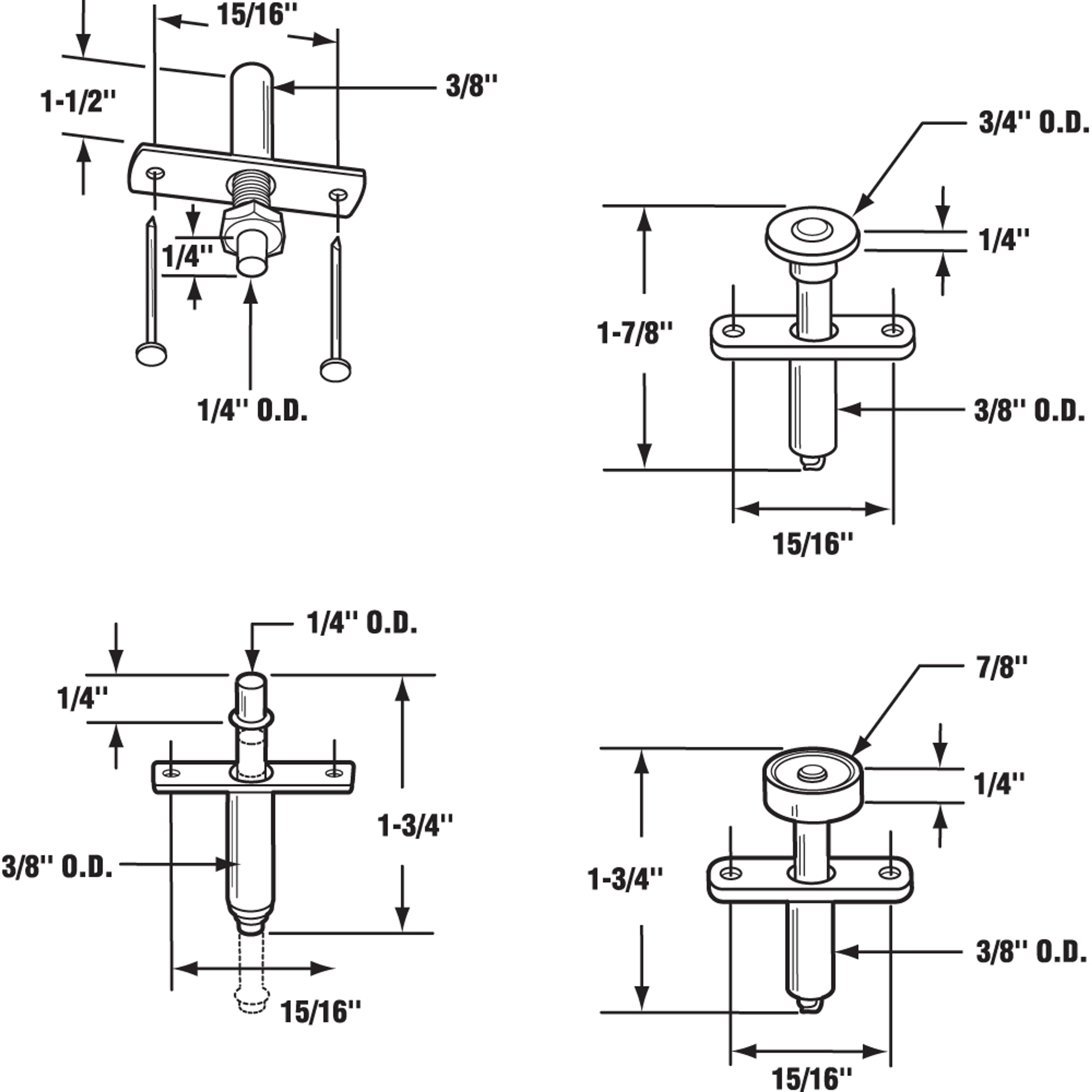

Please refer to the line art drawing for all dimensions and compare all these dimensions with the needs to fit your bi-fold door track before ordering

[/SPECIFICATIONS]

[WARRANTY]

[/WARRANTY]

2b:T4b2,[PRODUCT_DESCRIPTION] This bi-fold door pivot repair kit is constructed of plastic and steel components and they fit 3/8 inch diameter holes. The kit includes one Prime-Line part N 6611 top roller guide with a 3/4 inch plastic wheel, one Prime-Line part N 6614 top roller guide with a 7/8 inch plastic wheel, one Prime-Line part N 6612 top pivot with a 1/4 inch steel pivot, and one Prime-Line part N 6613 bottom pivot with a 1/4 inch steel pivot. All are nail-down style with nails provided, and all except for the N 6613 bottom pivot are spring-loaded components. These repair parts are used on bi-fold doors made by many manufactures, and they can be used to replace damaged or missing bi-fold hardware to restore the doo

Bi-Fold Door Hardware Repair Kit, Includes 2 Plastic Roller Top Guides, 1 Top Pivot and 1 Bottom Pivot (Assortment Pack)

Bi-Fold Door Hardware Repair Kit, Includes 2 Plastic Roller Top Guides, 1 Top Pivot and 1 Bottom Pivot (Assortment Pack)
