[PRODUCT_DESCRIPTION]

When your sliding door mortise lock is broken or old, don’t replace the door entirely, just get a new mortise lock! This E 2014 Mortise Lock has an adjustable, spring-loaded hook latch projection for surface-mounted sliding patio doors constructed of wood, aluminum and vinyl with handle sets with a veritcal degree keyway position when in the locked position. It also fits doors using W&F manufactured handles. The mounting hole centers of this lock measures 3-11/16 inch from center to center, and the rear housing corners are square. Selection Tip: To ensure the perfect match is selected prior to purchasing, the lock will need to be removed to compare the following 4 features (besides the width of housing): 1) The distance of the mounting holes measured from center to center, 2) The faceplate ends; rounded or square, 3) The position of the slotted keyway when in the locked position; at 45-degree angle or vertical, and 4) The shape of the housing corners at the rear; square or slanted. Installation Tip: Watch the manufacturer’s How-To Video that is linked to this item page

[/PRODUCT_DESCRIPTION]

[SPECIFICATIONS]

5-Pin tumbler lock. Note: Measure your door's backset, cross bore and thickness to ensure you find the right fit
Solid brass 5/8 inch housing with a chrome face and Schlage shaped keys
Cylinder length 1-1/4 inch with hardened break away tail piece (may need to be trimmed to fit your lock)

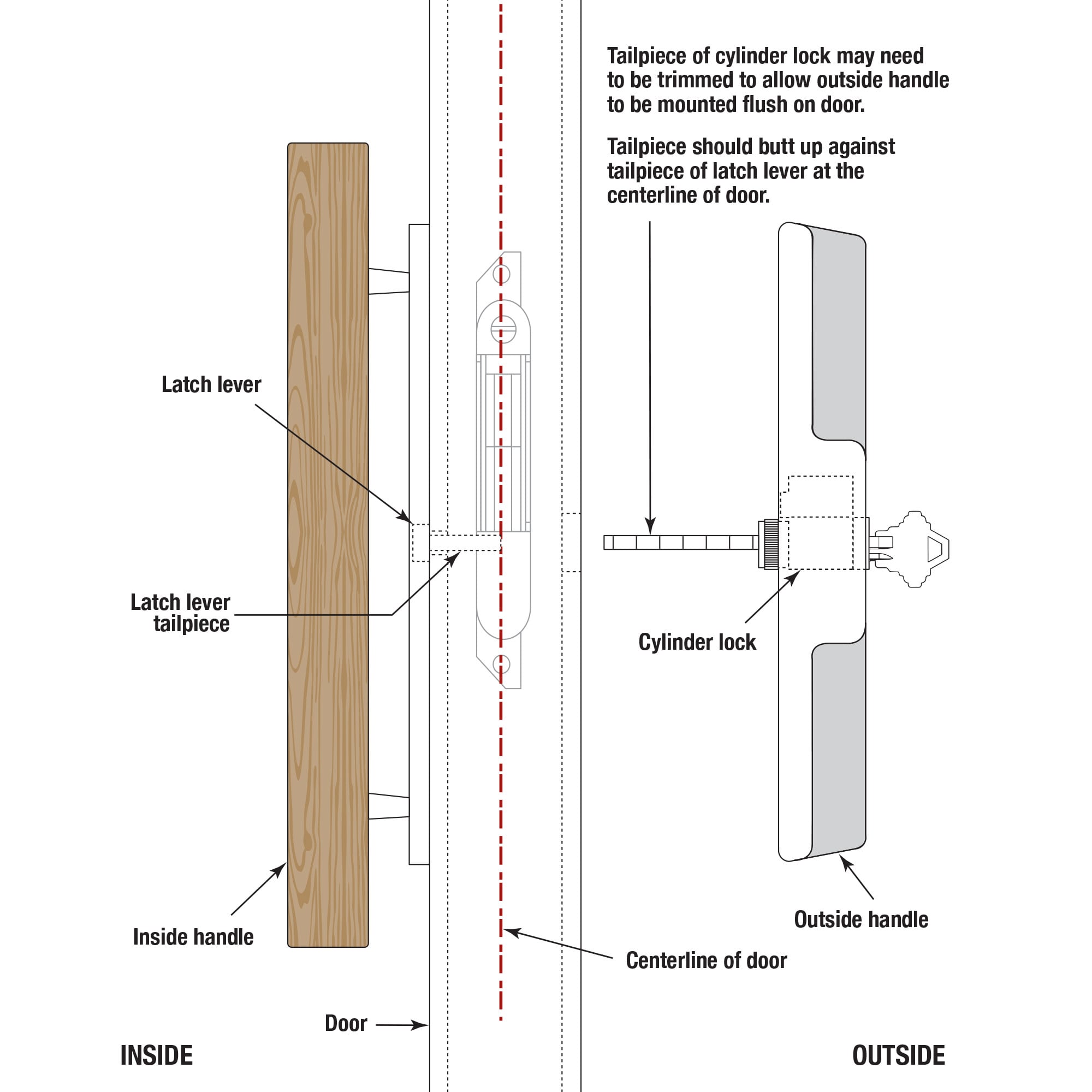

Hardened break away tailpiece may need to be trimmed to fit your door
Please refer to the line art drawing for dimensions and compare with your original item before purchasing (Not Universal)

[/SPECIFICATIONS]

[WARRANTY]

Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.

[/WARRANTY]

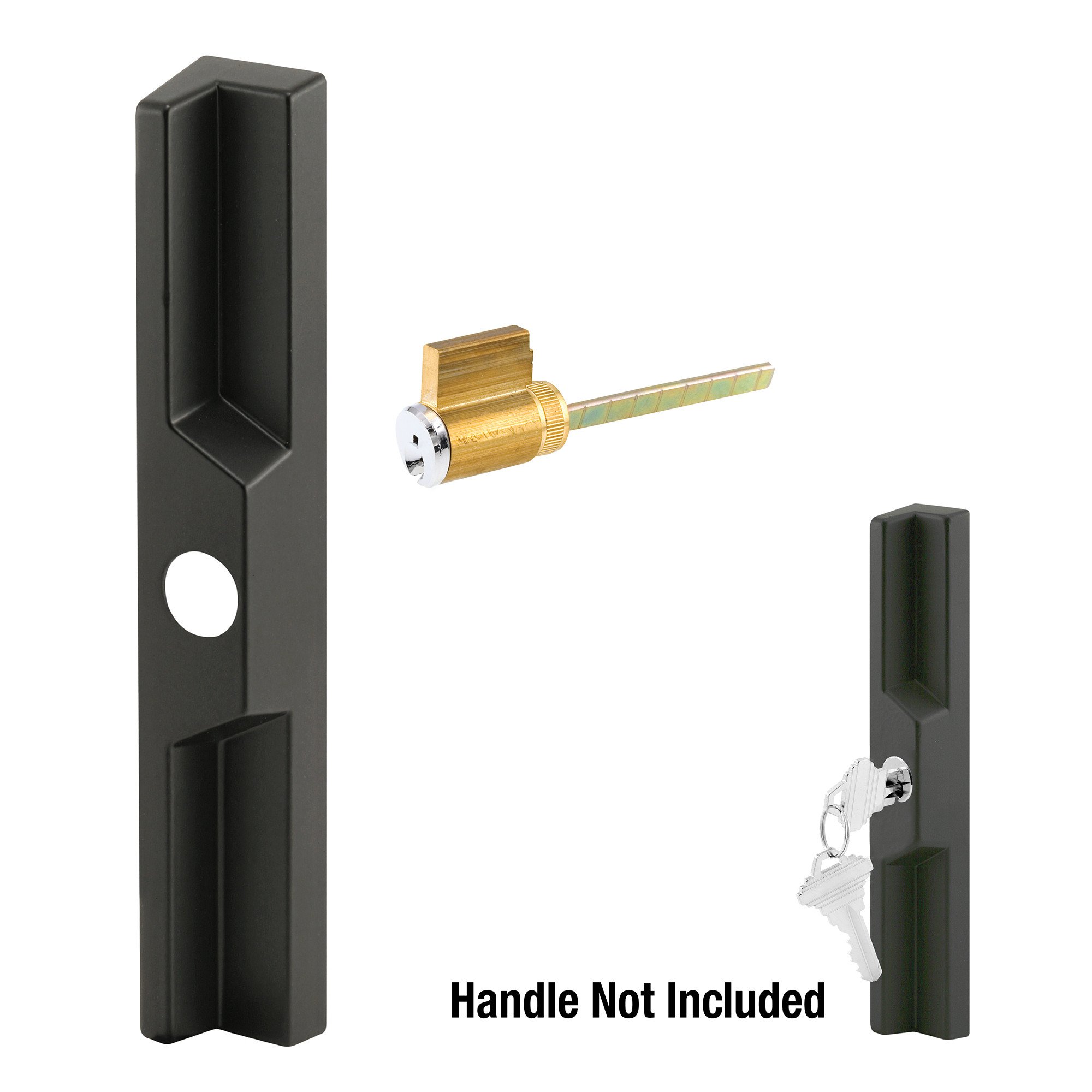

1-1/4 in. Cylinder Lock, Schlage Shaped Keys (Single Pack)

1-1/4 in. Cylinder Lock, Schlage Shaped Keys (Single Pack)
