1-1/2 in. Steel Roller Assembly with Ball Bearing and Plain Back Housing, for Air Control, Howmet, Krestmark (Single Pack)
SKU:
D 1563
$15.87
1-1/2 in. Steel Roller Assembly with Ball Bearing and Plain Back Housing, for Air Control, Howmet, Krestmark (Single Pack)

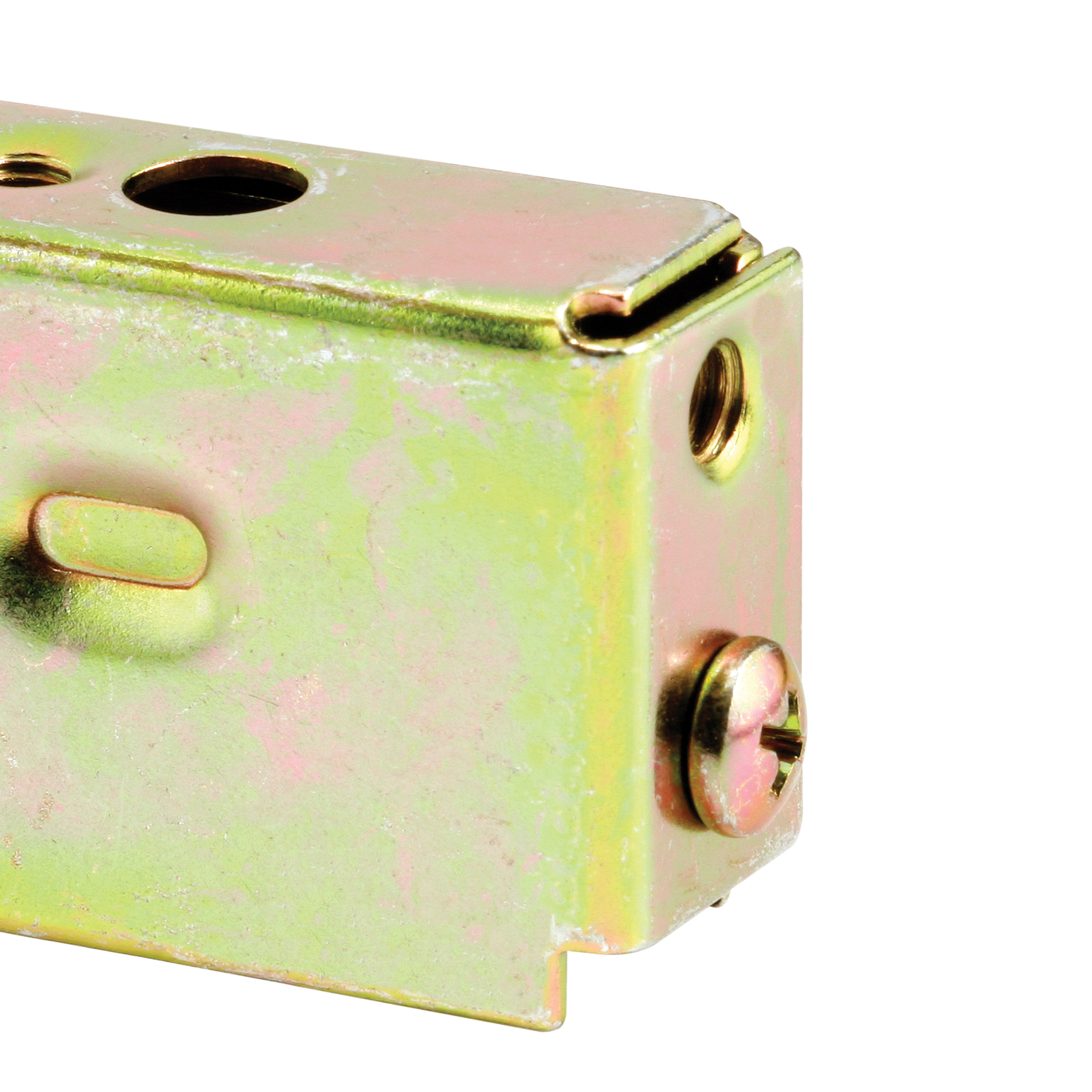

This is a plain back patio door roller assembly with a 1-1/2 inch concave or grooved steel ball bearing roller. It has a plain back housing that is 3/4 inch wide and 1-3/8 inch tall. It is rear adjusting with a 1/4-20 threaded mounting hole on the back end and an optional use #10-32 threaded hole on top. It is used by Air Control, Howmet, Krestmark and a variety of other manufacturers of patio doors.
- Can be found on Air Control, Howmet, Krestmark and a variety of other sliding patio door manufacturers
- 1/4-20 threaded mounting hole on the back end and an optional use 10-32 threaded hole on the top of the housing

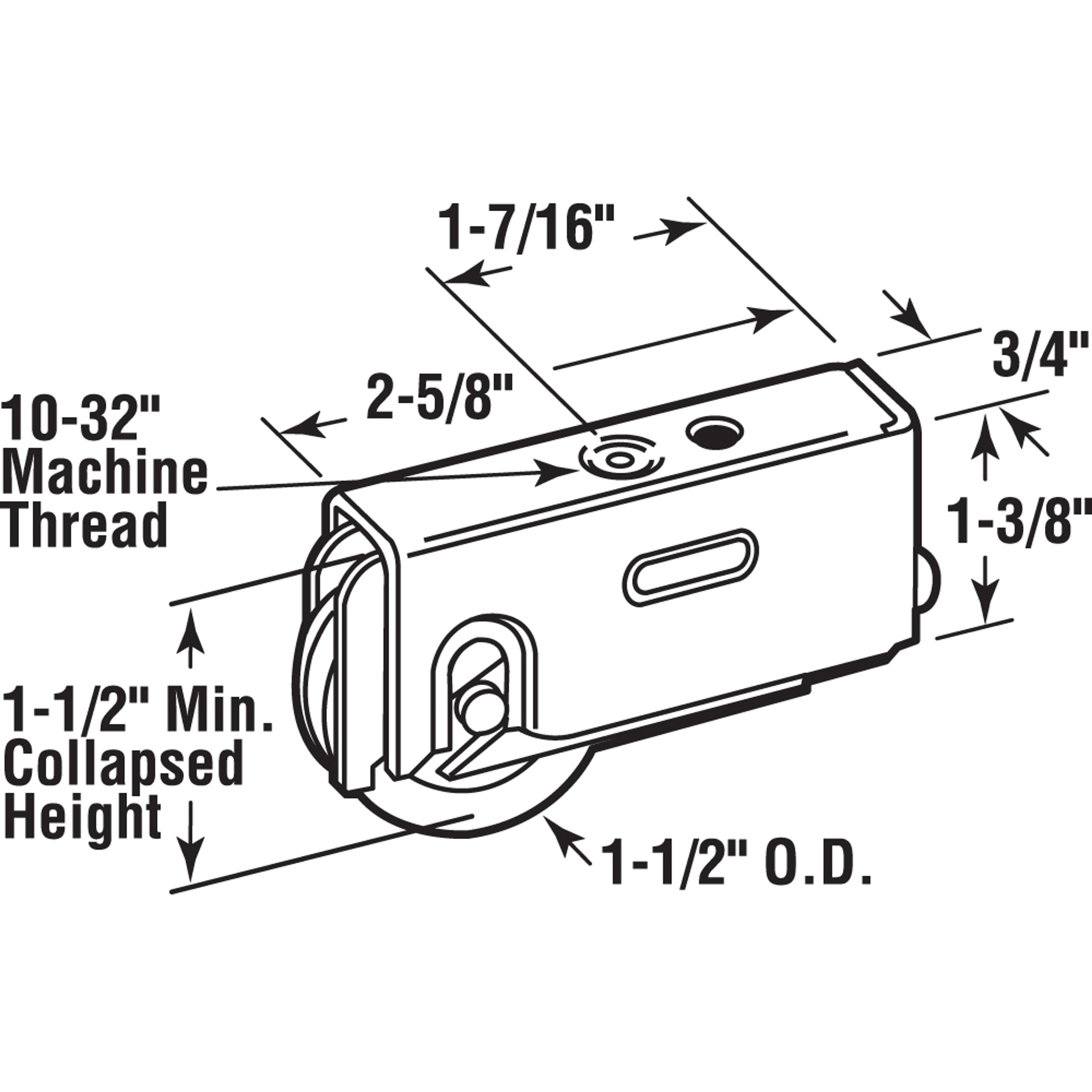

- Housing is 2-5/8 inch in length, 3/4 inch width, 1-3/8 inch height with a mounting hole 1-7/16 from the leading edge that is 10-32
- Constructed of stamped steel with a 1-1/2 inch concave ball bearing steel roller
- Please refer to the line art and compare with your needs before ordering; this will only fit 1/4 inch thick panels (Not Universal)
Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.
