1-1/4 in. Sliding Screen Door Tension Spring with Concave Plastic Rollers (2 Pack)

SKU:

B 515

$9.47
1-1/4 in. Sliding Screen Door Tension Spring with Concave Plastic Rollers (2 Pack)
1-1/4 in. Sliding Screen Door Tension Spring with Concave Plastic Rollers (2 Pack)

1-1/4 in. Sliding Screen Door Tension Spring with Concave Plastic Rollers (2 Pack)

  • Used by Bay Mills screen doors and a variety of other sliding screen door manufacturers
  • Installs by snapping onto the existing diecast door frame corner
  • View Details

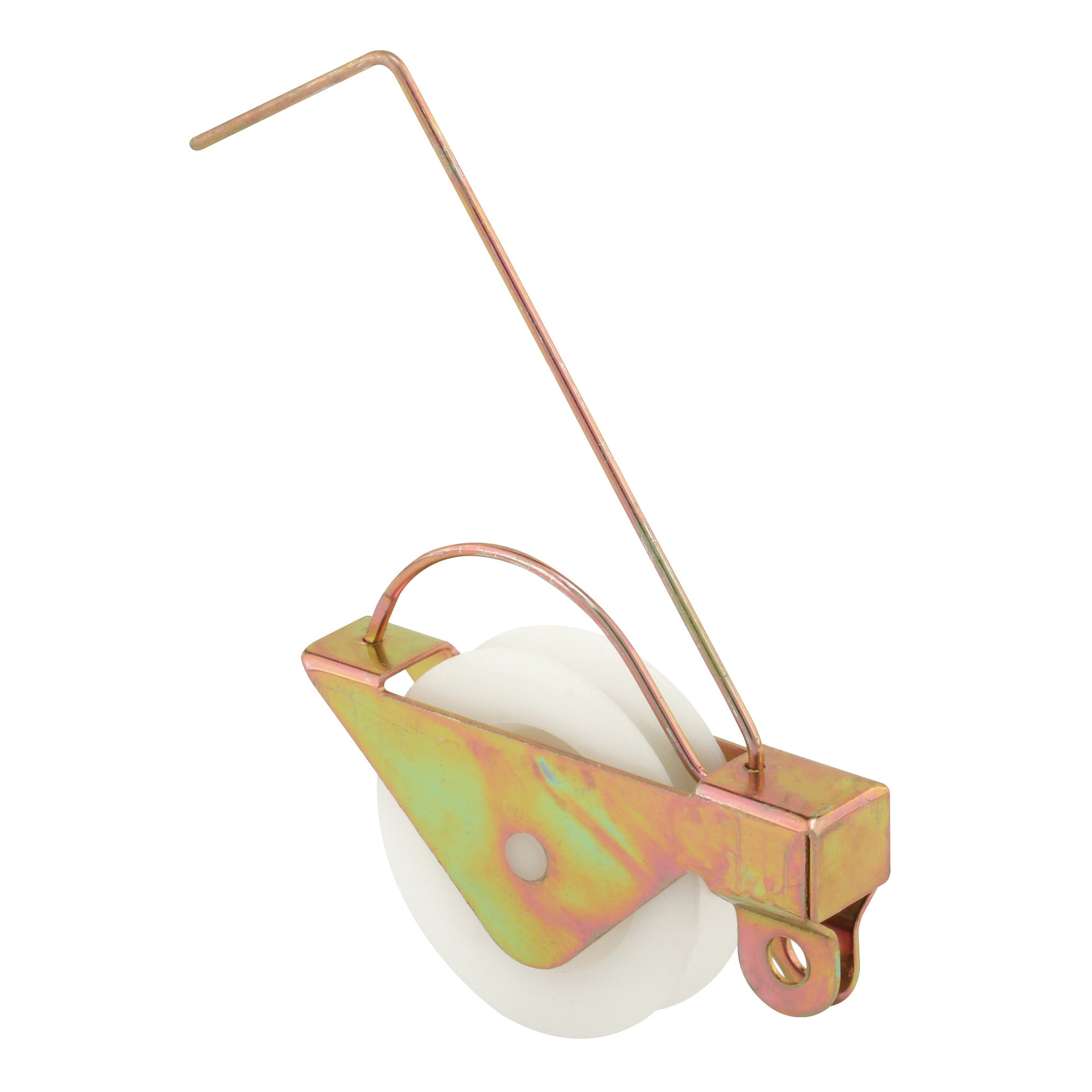

Are you having trouble sliding your screen door open or closed? Have you checked your rollers/roller assemblies? Don’t replace the entire door. For a fraction of the cost of a new door, replace those worn-out rollers. This is an Arcadia style roller assembly used by Arcadia doors as well as a variety of other sliding patio door manufacturers. This is also currently a very popular design amongst patio door manufacturers in today's market place. It has a wire tension spring and comes with a 1-1/4 Inch diameter high density polyethylene roller and fits onto the Prime-Line part B 569 corner insert (sold separately). It is often used on the top as well as the bottom of the sliding screen door. Also look at Prime-Line parts B 515, B 610, B 714, B 736 and B 821 for similar spring tension rollers. Order yours today and have your door slide like new.

  • Used on Arcadia and a wide variety of other sliding screen door manufacturers
  • Assembly body is 3/8 inch wide with mounting tabs with holes and are not a hook style
  • Installs by snapping tabs with holes over and onto the existing diecast door frame corner pins
  • Body and tension spring of the roller assembly is stamped steel with a polyethylene roller

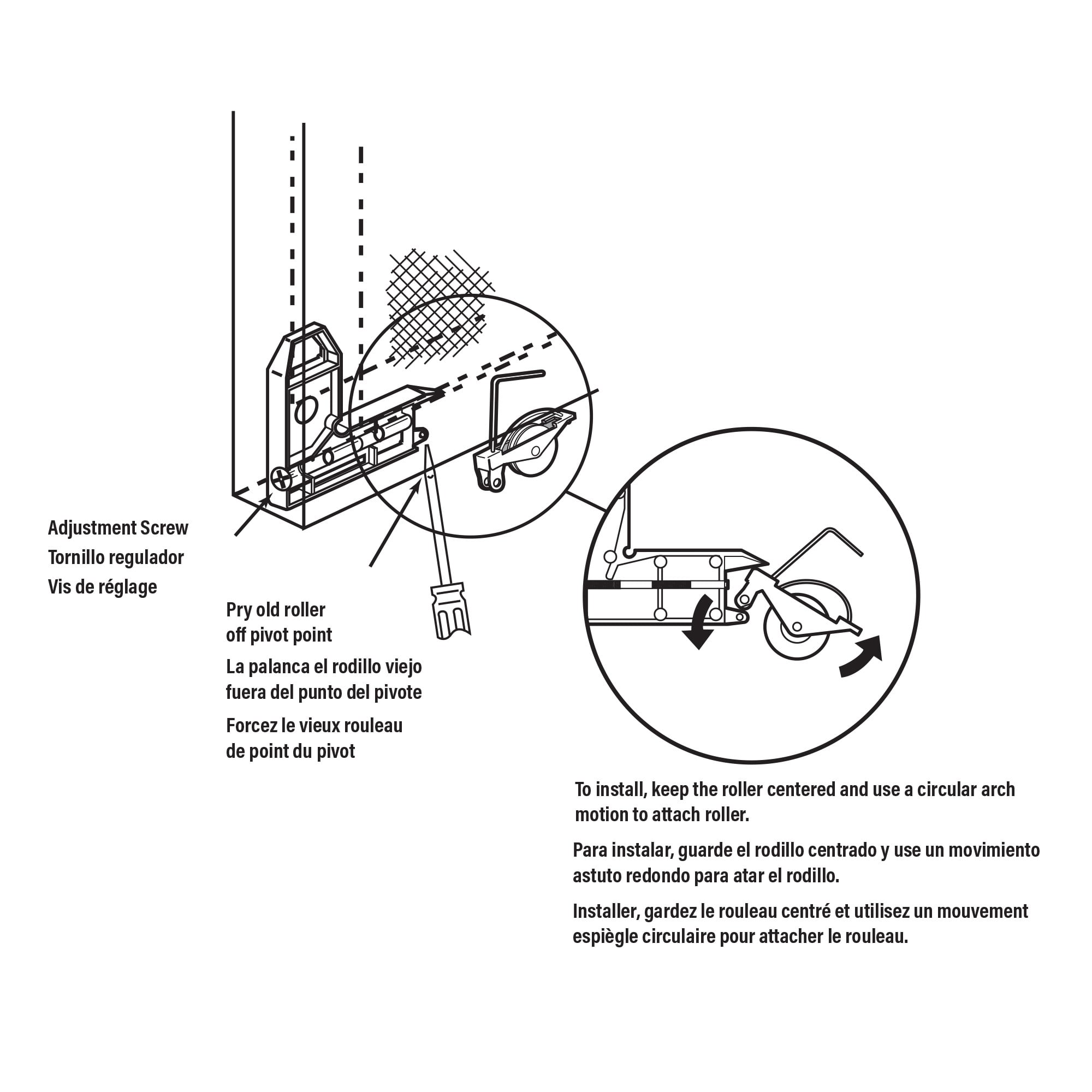

  • Please refer to the line art drawing and compare with your needs item before purchasing (Not Universal)

Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.



View Installation Instructions
