9 in. Diecast Construction White Painted Finish Right Hand Casement Operator with Teardrop Body (Single Pack)
SKU:
H 3709
$21.85
9 in. Diecast Construction White Painted Finish Right Hand Casement Operator with Teardrop Body (Single Pack)

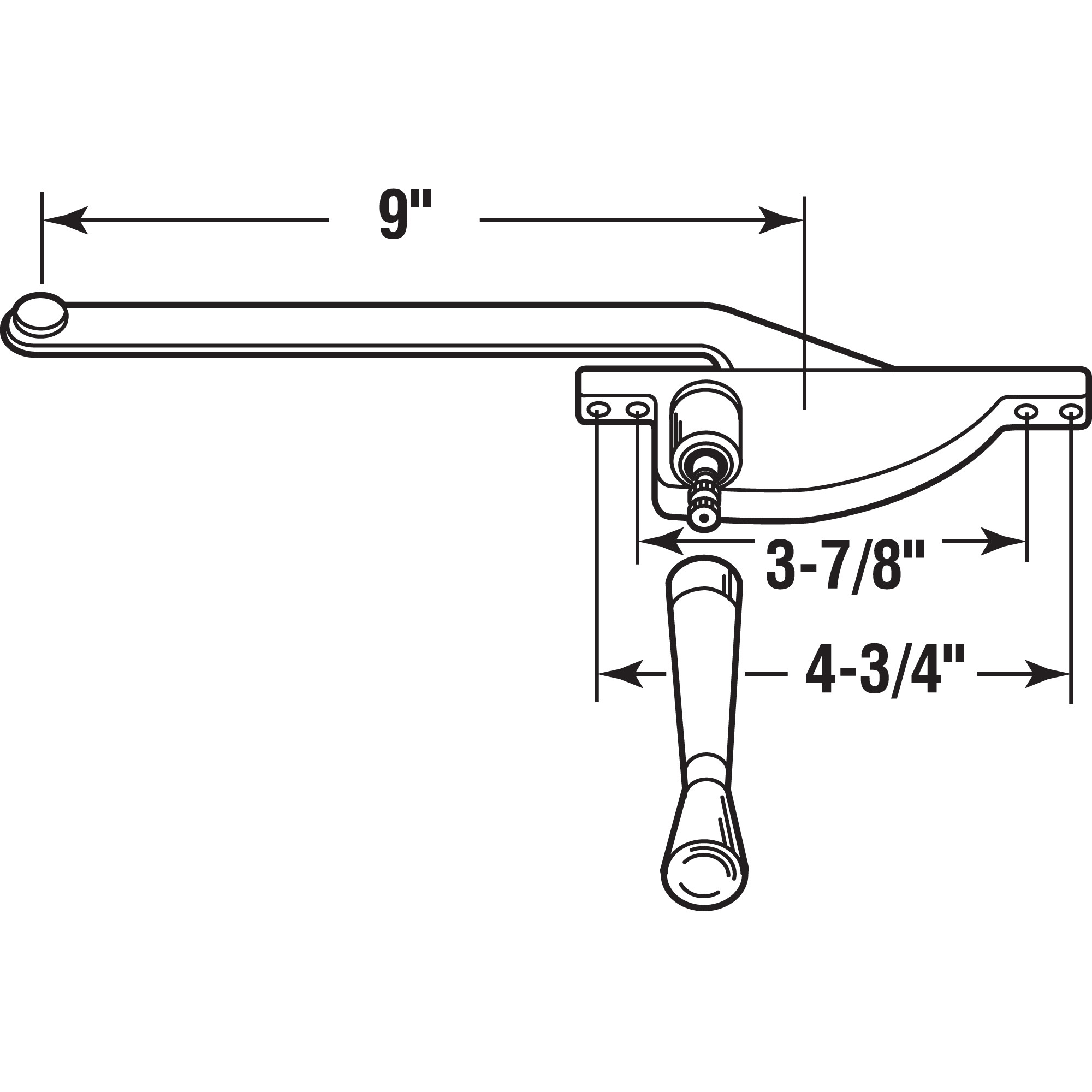

This casement window operator is a right-handed aluminum square body type . It has a 9 inch steel arm with a round disc on the tip (some older styles had a small wheel instead of a disc). The disc slides in the Prime-Line part H 3529 casement track located on the bottom of the casement window. It is worm gear driven by a 3/8 inch crank spindle. The matching crank handle that fits onto the crank spindle and installation screws are included. Mounting holes available are 3-7/8 inch and 4-3/4 inch on center.
- Heavy duty diecast zinc construction with a white finish
- Steel worm drive gear for durability
- Matching crank handle is included
- A Phillips head screwdriver is required for installation
- Please refer to the line art drawing and compare with your original item before purchasing
Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.
