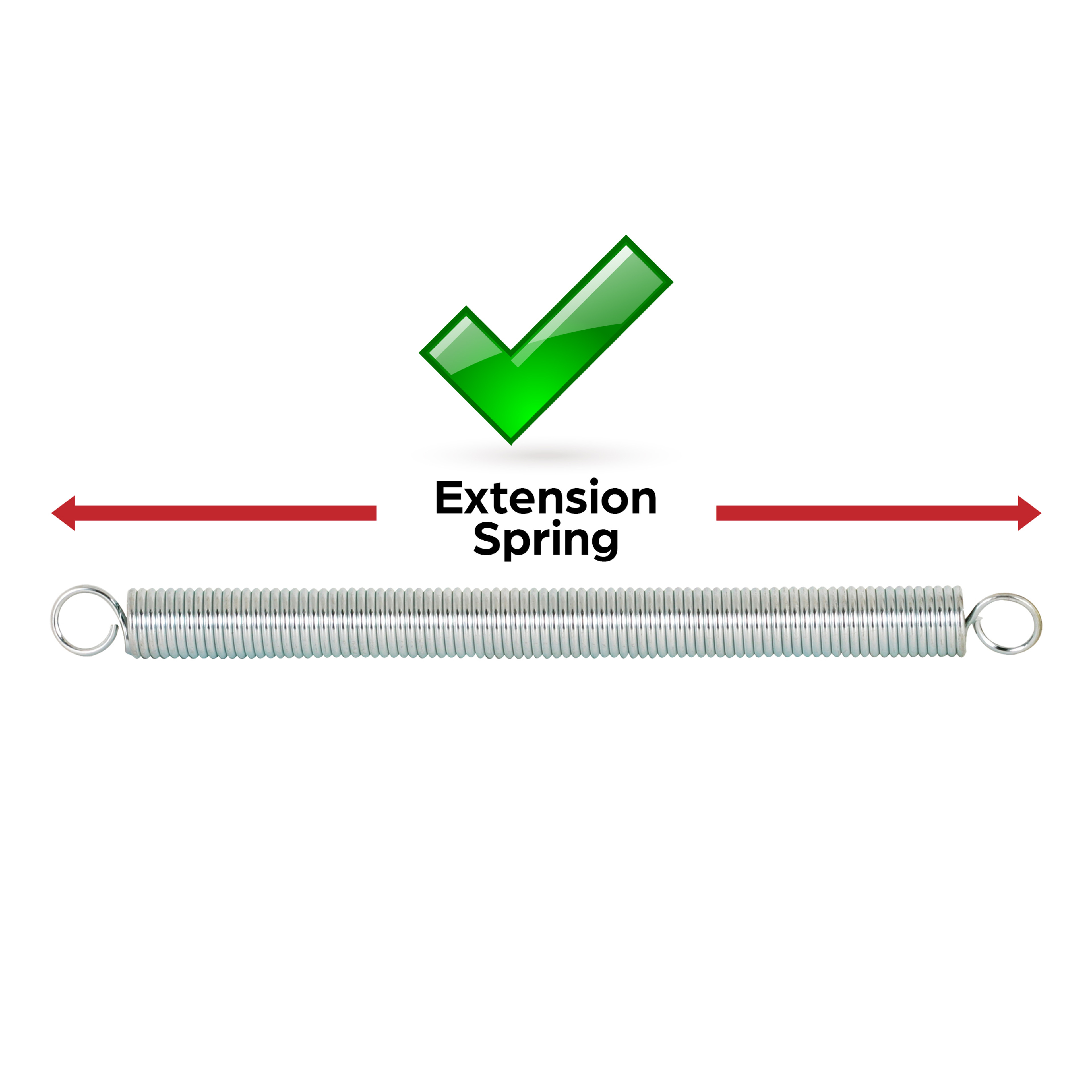

Extension Spring, Spring Steel Construction, Nickel-Plated Finish, 0.072 GA x 5/8 in. x 2-1/2 in., Single Loop Open (2 Pack)

SKU:

SP 9610

$7.64
Extension Spring, 5/8 in. x 2-1/2 in. , 0.072 in. Diameter, Single
Extension Spring, 5/8 in. x 2-1/2 in. , 0.072 in. Diameter, Single

Extension Spring, Spring Steel Construction, Nickel-Plated Finish, 0.072 GA x 5/8 in. x 2-1/2 in., Single Loop Open (2 Pack)

  • General use spring for toys equipment tools etc.
  • Made from spring steel 0.072 in. wire diameter
  • 5/8 in. x 2-1/2 in
  • View Details

These Handyman Single Loop Closed Extension Springs by Prime-Line Products are constructed of durable spring steel, and they come finished in a beautiful, corrosive-resistant, nickel-plated finish. Single loop closed end extension springs like these are used for a variety of household and professional applications. The outside diameters, lengths and gauge thicknesses vary between each of these springs, while their dependability does not. Use these springs for repairs around the house, in the office, vehicle, garage and in many other applications.

  • These extension springs are designed with single loop closed ends for easy and reliable fastening to fixed and moving parts, for use in a variety of applications; appliances, automotive, marine, toys, tools, mechanical devices, contraptions and more
  • Spring dimensions: 5/8 inch outside diameter, 15/32 inch inside diameter, 2-1/2 inch length, 0.072 inch wire diameter, 19.1 pounds maximum safe load, 0.92 inch maximum deflection and come in a beautiful, corrosion resistant, nickel plated finish allowing them to be used both indoors and out
  • Constructed of durable spring steel (tempered steel wire) to provide optimum retraction when stretched and designed for use with a variety of household and professional applications with an inside diameter of 0.481 inch
  • Things to take note of this item: the shape of each end of the spring, how far will it stretch (deflection), length of the spring measured from the ends of the hooks and how much weight can it support
  • Please refer to the line art drawing for dimensions and compare with your needs before ordering (Not universal)

Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.



View Installation Instructions
