Patio Door Handles

Sliding door handles seamlessly integrate into a patio door, providing a comfortable grip to slide the door open or closed. Each handle comes in a variety of styles, including mortise, surface mount, and pull.

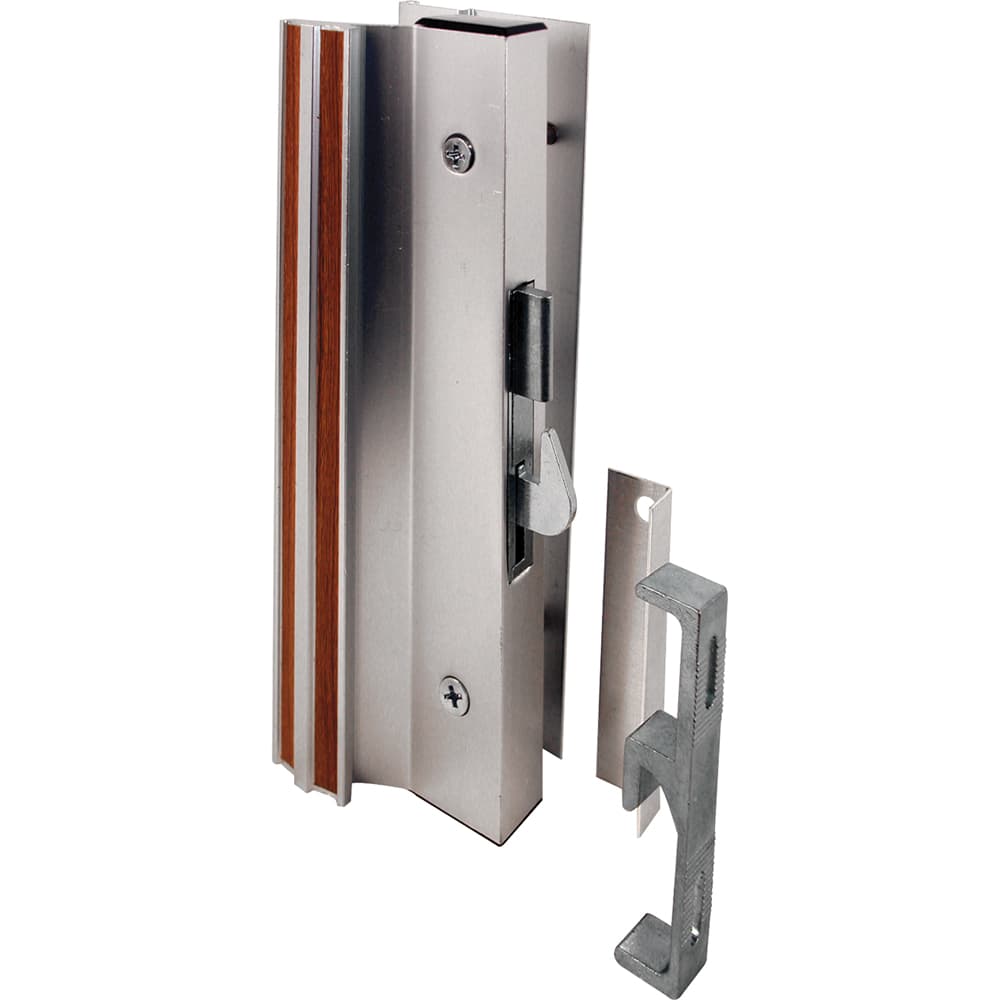

Surface Mount Hook Latch Handle

A surface-mount hook latch handle has a surface-mounted latch with a hook mechanism that extends beyond the latch housing and into a keeper attached to the jamb. Some models offer anti-lift bars, which help to prevent unauthorized lifting and removal of doors.
﻿
Hole Spacings Available: 2-11/16"; 3"; 3-1/2"; 3-7/8"; 4"; 4-15/16"; 5"; 5-1/2"; 6-9/16"

Shop All Surface Mount Handles

Internal Hook Latch Handle

The internal latch handle consists of an outside pull and an inside handle with a latching mechanism attached. The latch portion is inserted into the door frame and secures the door to the jamb by means of a jamb keeper.
﻿
Hole Spacings Available: 3-1/2" and 3-15/16"

Shop All Internal Latch Handles

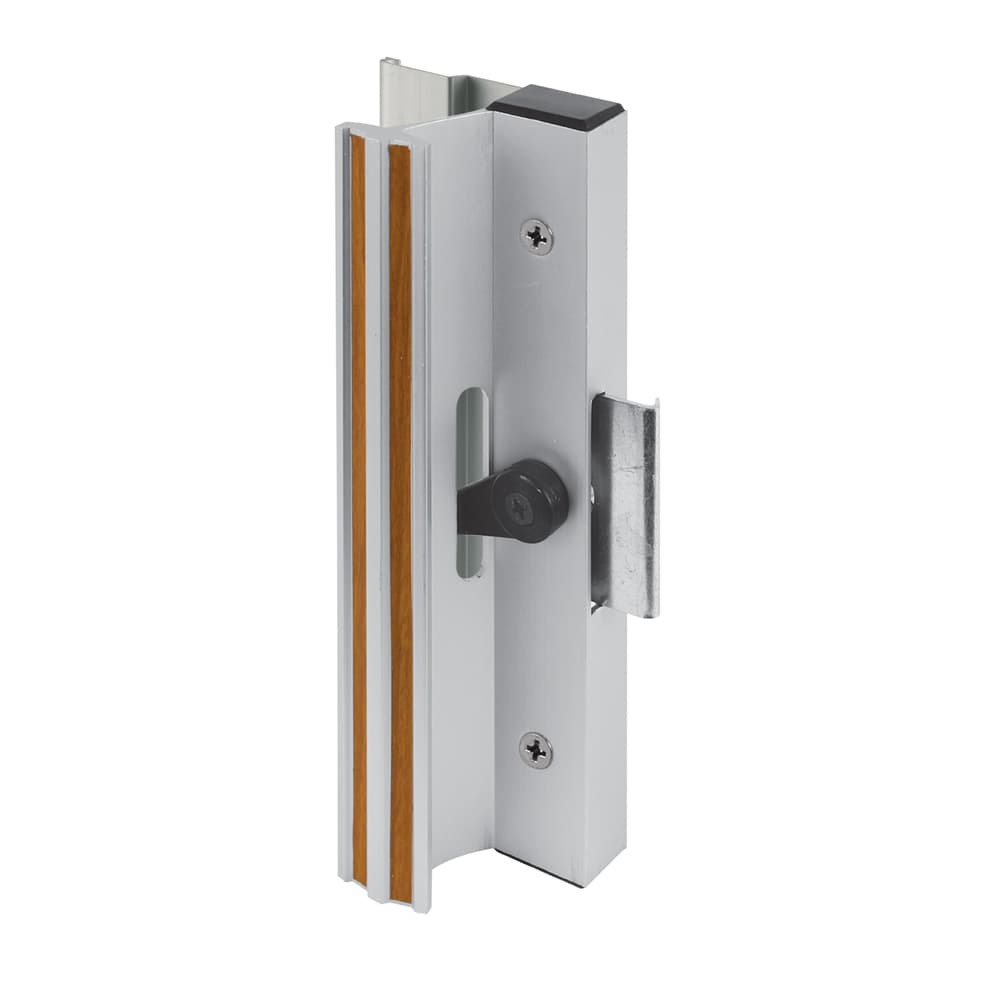

Surface Clamp Latch Handle

The surface clamp latch handle has a surface-mounted latch with a clamping mechanism that projects beyond the latch housing and clamps to the extruded lip on the jamb.
﻿
Hole Spacings Available: 3" and 4-15/16"

Shop All Clamp Latch Handles

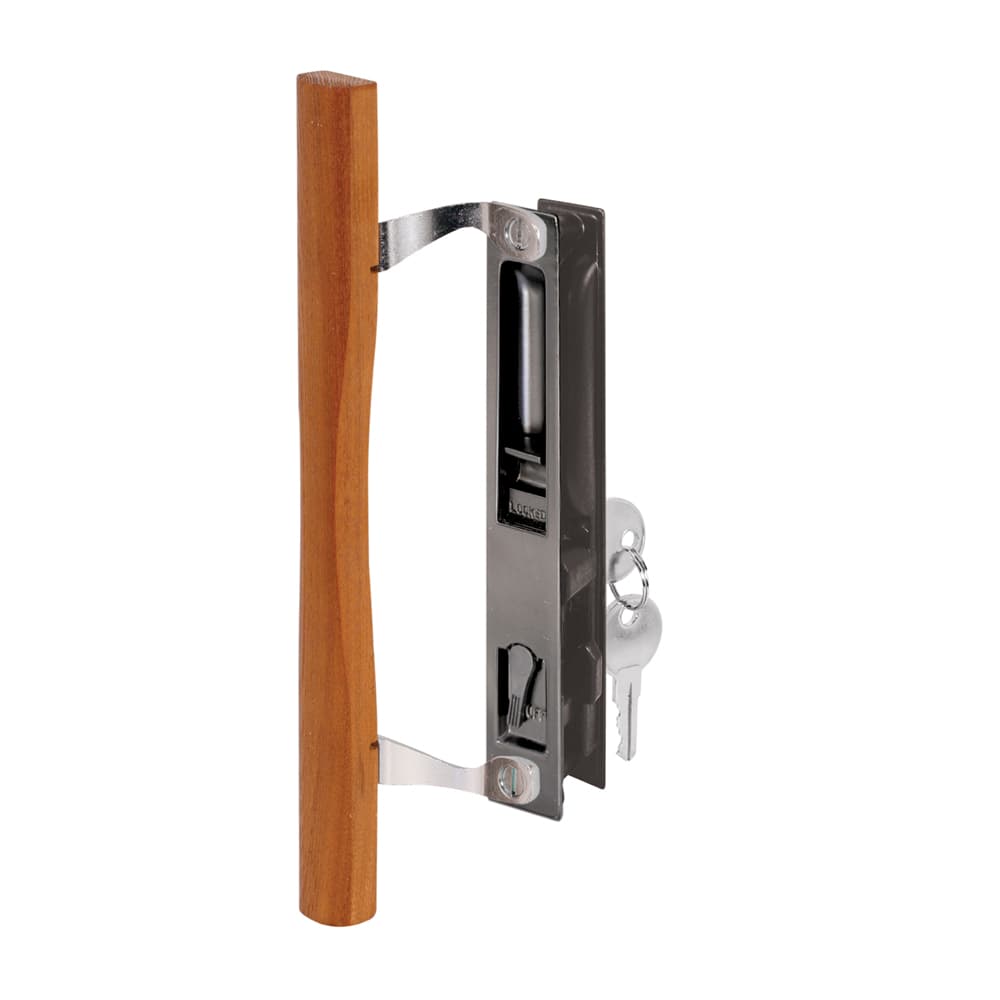

Flush Mount Latch Handle

The flush mount latch handle consists of an outside pull and an inside pull with a latching mechanism attached. The patio door frame is notched on both sides to allow both pulls to fit flush to the frame. The hook-type latch is located within the door frame and secures the door to the jamb by means of a jamb keeper.
﻿
Hole Spacings Available: 5"; 5-11/16"; 6-3/8"; 6-1/2"; 6-5/8"; 6-7/8"

Shop All Flush Mount Latch Handles

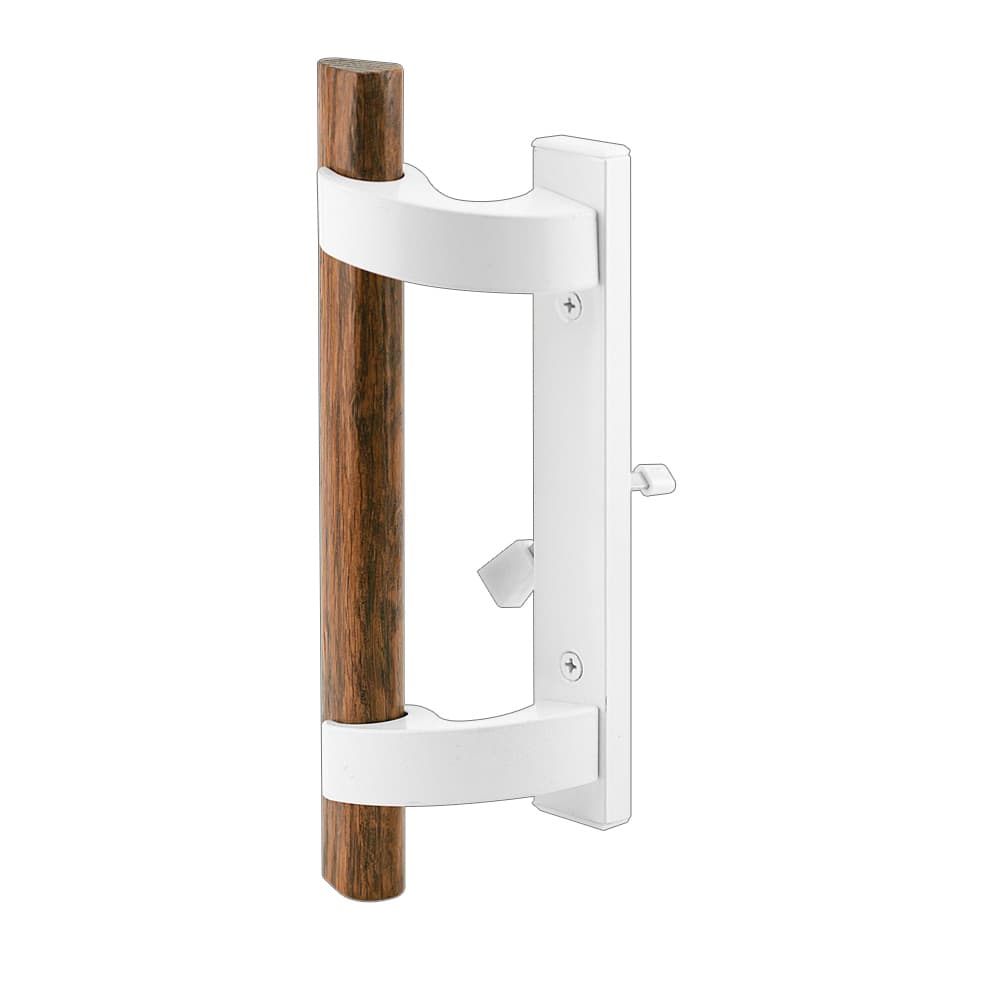

Mortise Latch Handle

The mortise latch handle consists of an outside pull and an inside handle with a latch-activating lever. The mortise latch style is used in conjunction with a mortise latching mechanism that is supplied separately. Various style mechanisms are available. The mortise latch fits into a notch in the leading edge of the door, and the activating lever engages the keyway to activate the hook latch.
﻿
Hole Spacings Available: 3-1/2" and 3-15/16"

Shop All Mortise Latch Handles

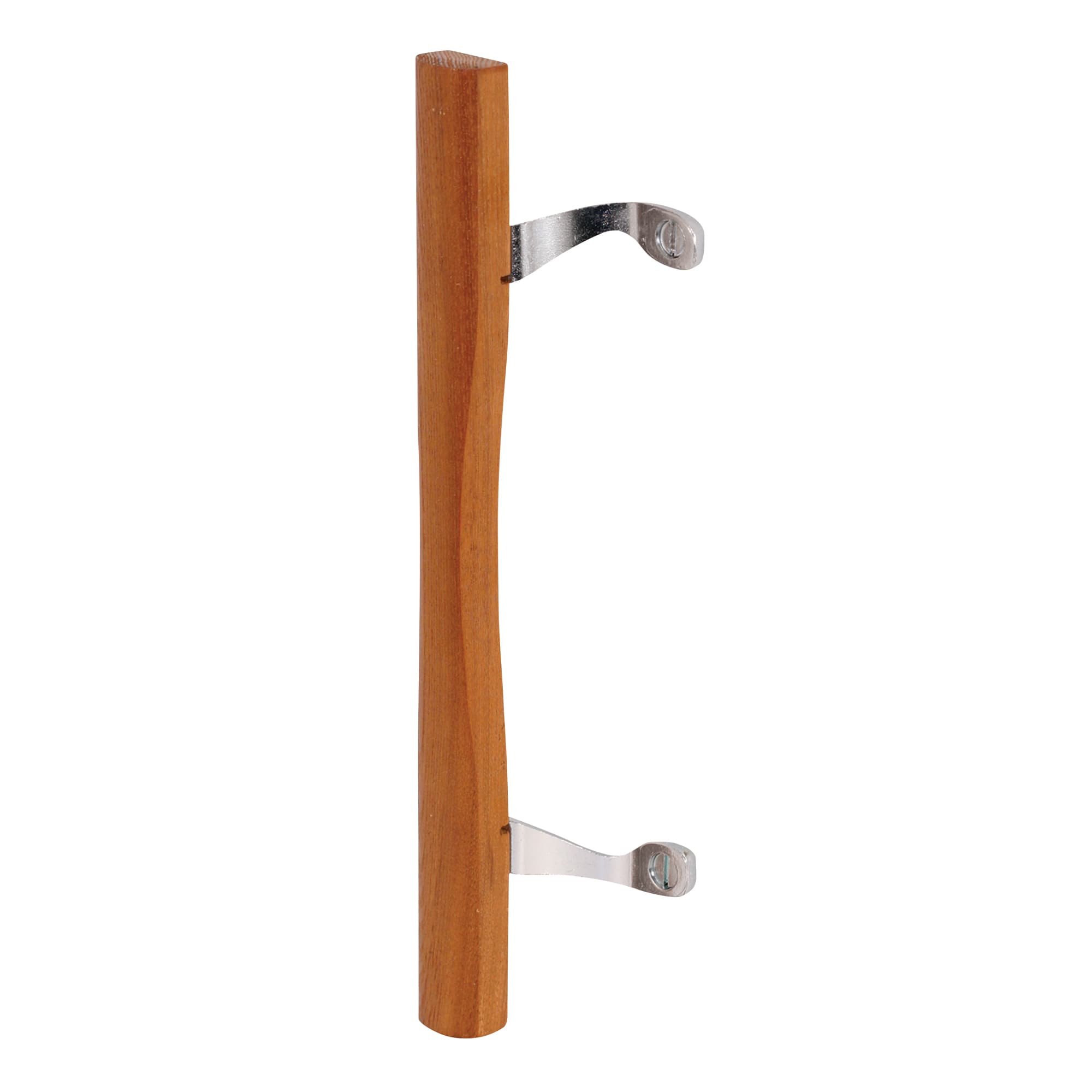

Pull Handle

The pull handle is made for use with most flush lock systems. Unlike other kinds of patio handles, the pull handle has a fixed grip that's meant for pushing or pulling the door open or closed. There are various styles of pull handles, and they are usually built with diecast materials or wood.
﻿
Hole Spacings Available: 6-1/2"; 6-3/8"; 6-5/8"

Shop All Pull Handles

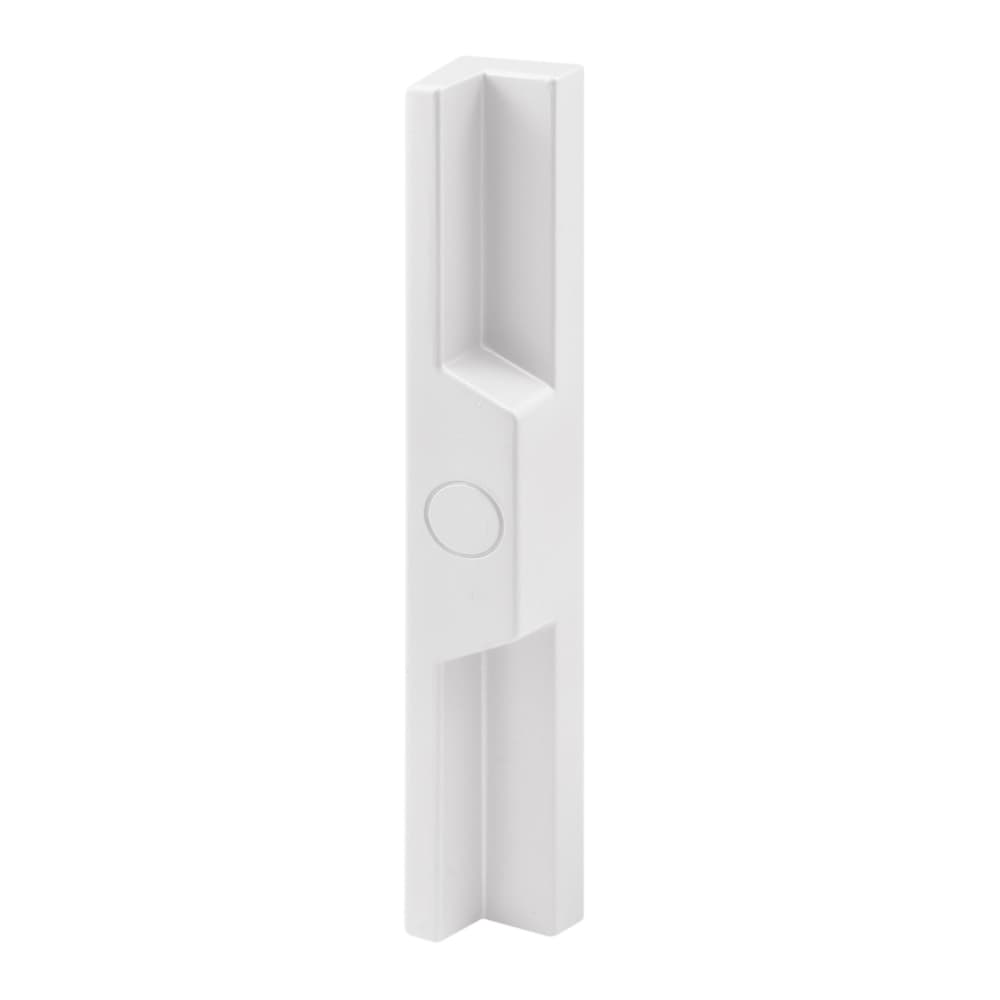

Outside Pull Handle

An outside pull handle is a handle used to open and close sliding patio doors. The outside pull handle design makes it incredibly versatile, making it easy to install on the left or right side on a variety of doors, and it is intuitive and easy to use. Some include a lock and key attached for extra security.
﻿
Hole Spacings Available: 2-11/16"; 3"; 3-1/2"; 3-15/16"; 4-15/16"; 5-5/8"; 6-7/8"; 6-9/16"; 7-1/4"; 7-3/4"

Shop All Outside Pull Handles
