[PRODUCT_DESCRIPTION]

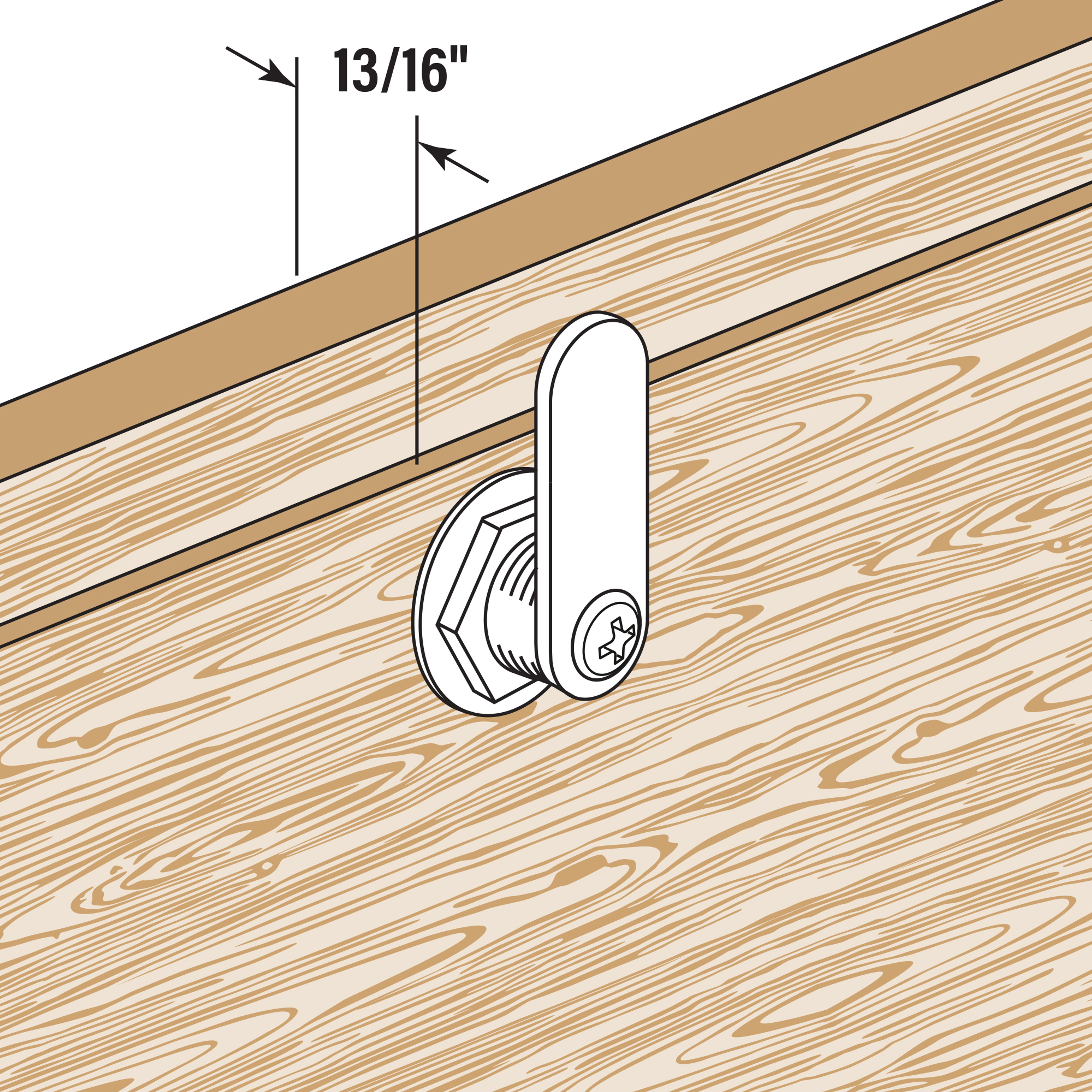

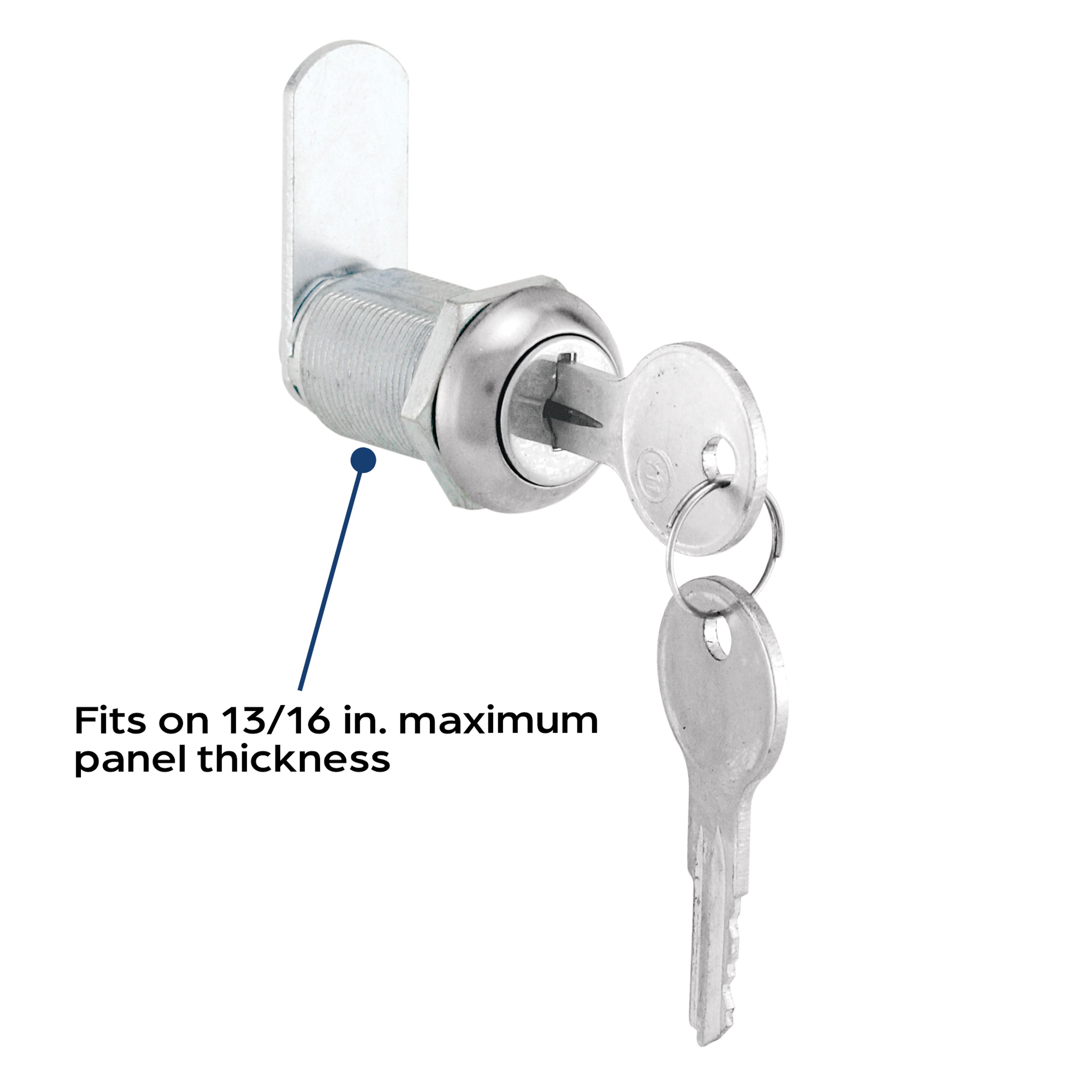

This drawer and cabinet lock is constructed of diecast and steel components and it comes in a stainless steel finish. Features a 3/4 in. outside cylinder diameter with a 1-1/8 in. length that will accommodate up to 13/16 in. thick panels. This drawer and cabinet lock can be mounted to metal or wood; door and/or drawer panels, and it comes complete with 3 cams, a trim collar, 2 reversible rotation washers, 2 keys and fasteners. This model number is keyed different and it uses Yale Y-11 keyway. Others have used these to replace damaged locks in work truck tool boxes and gumball machines.

[/PRODUCT_DESCRIPTION]

[SPECIFICATIONS]

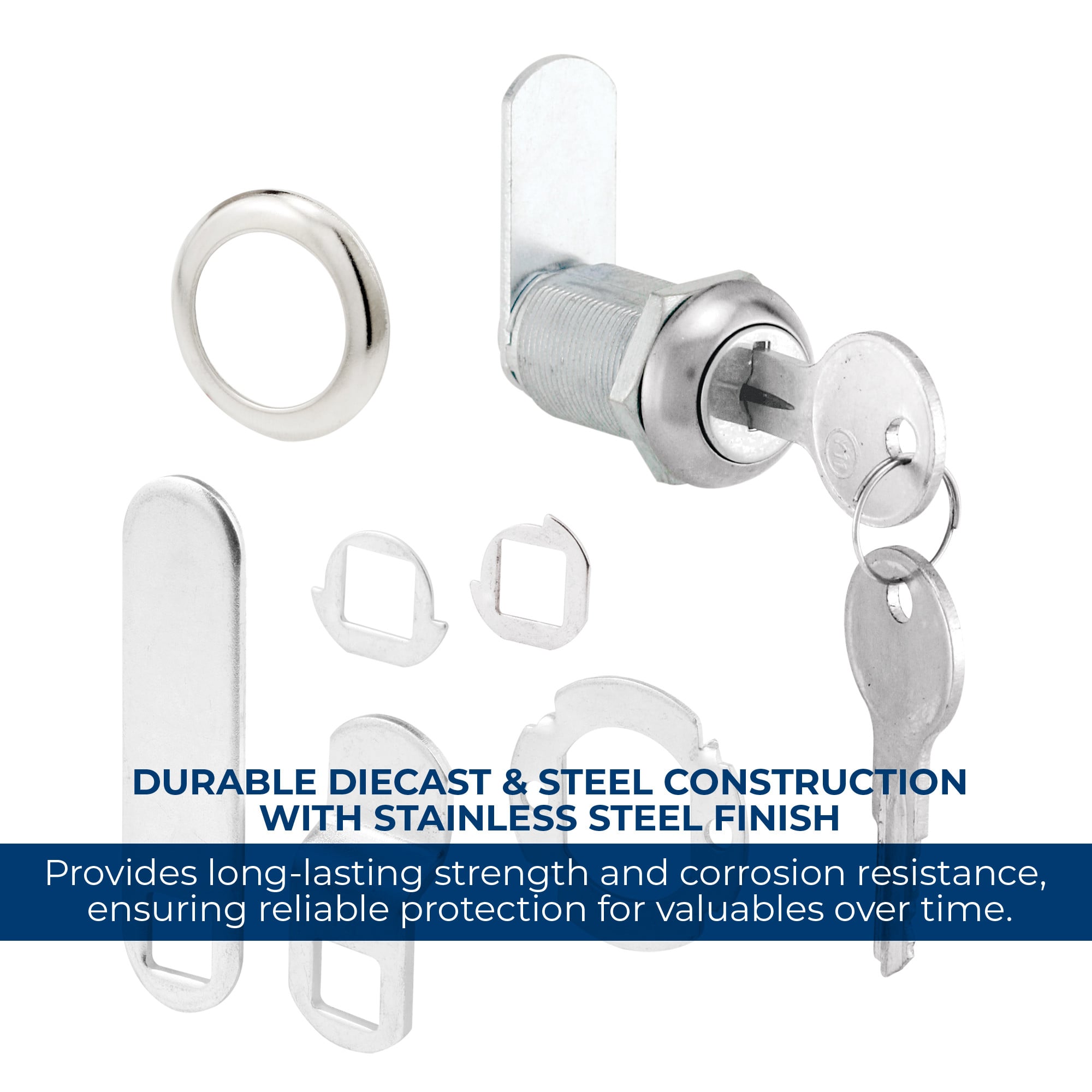

Durable diecast and steel construction with a stainless steel finish
All hardware included for installation

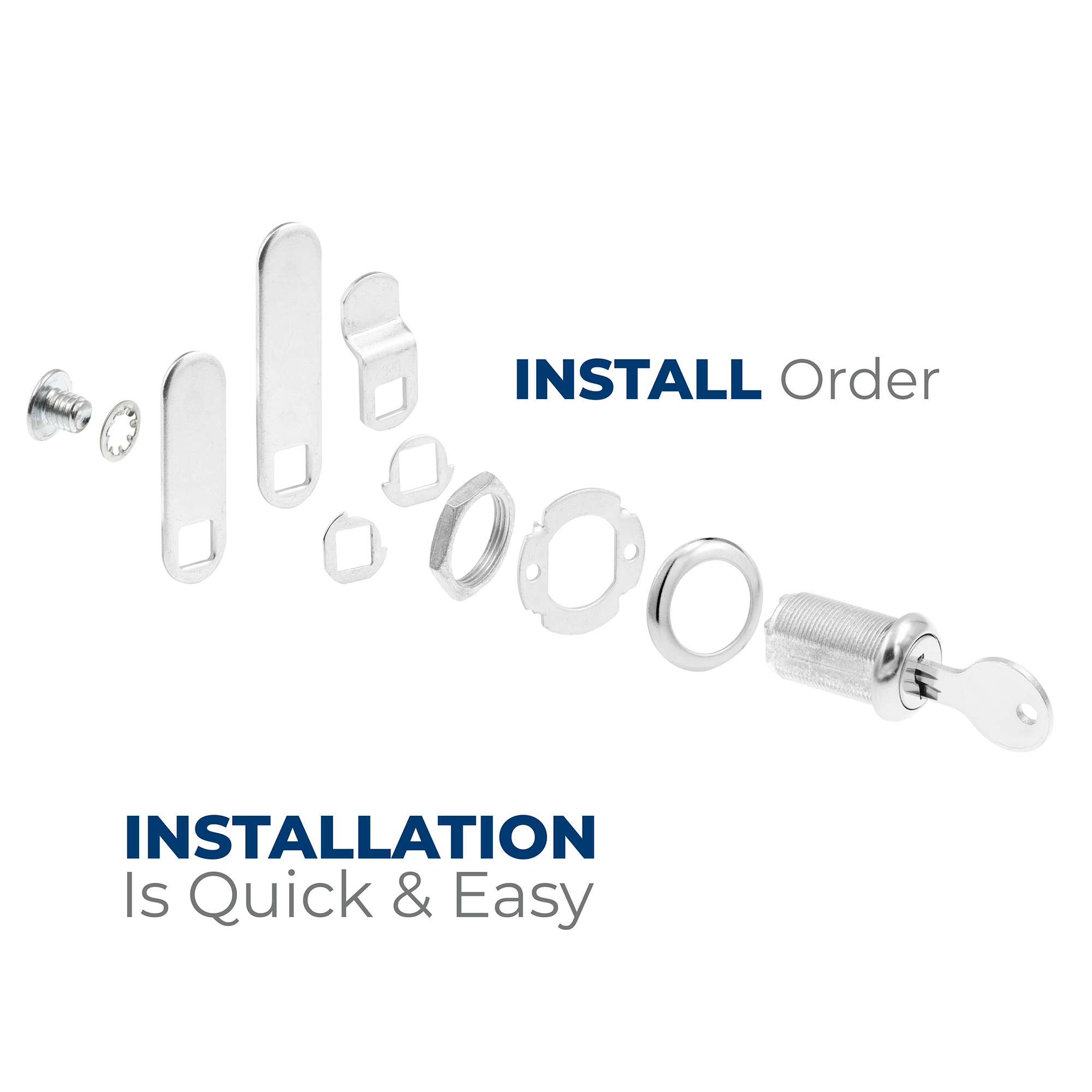

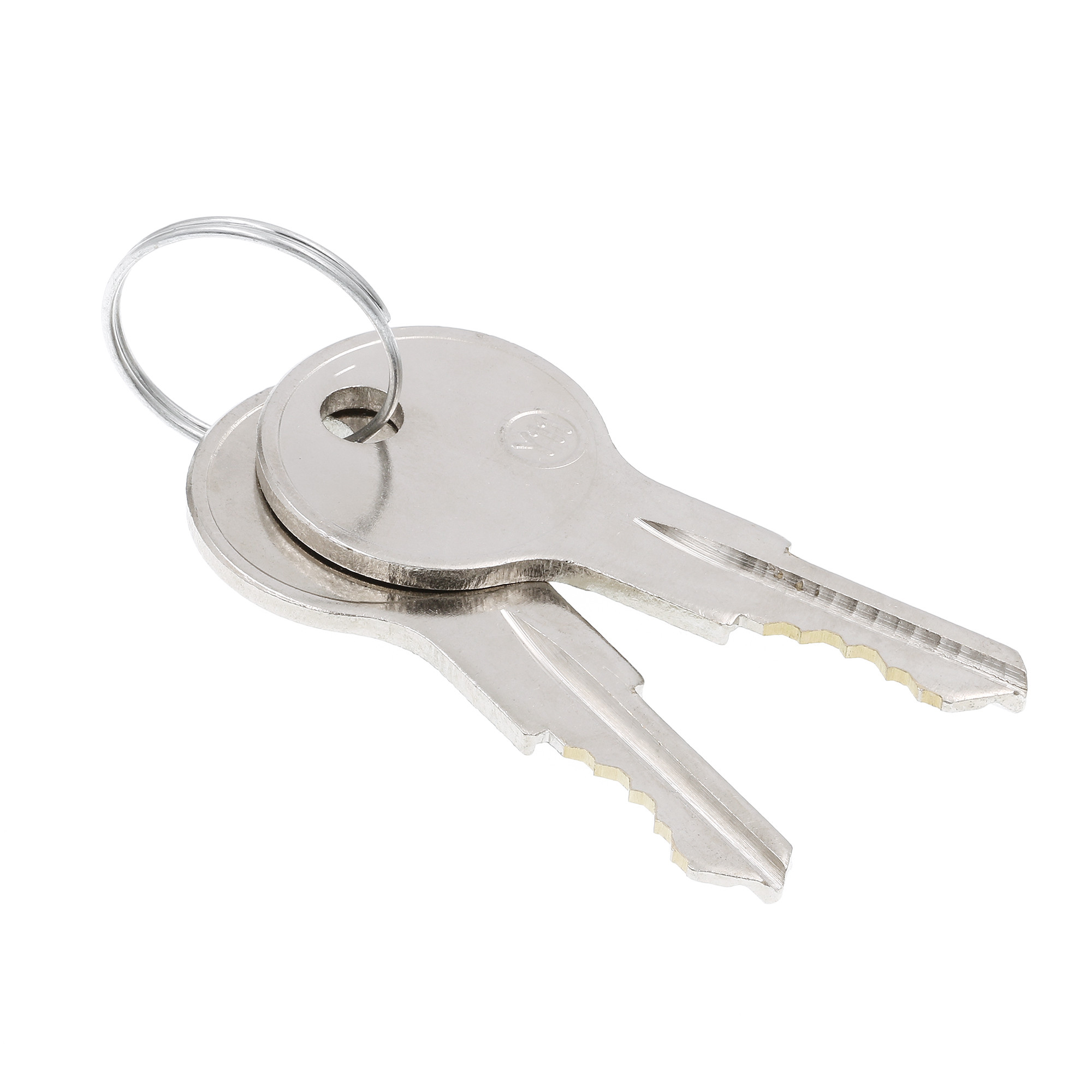

Contains 1 lock, 3 cams, 1 trim collar, 1 spur washer, 2 rotation washers, 1 lock nut and 2 keys

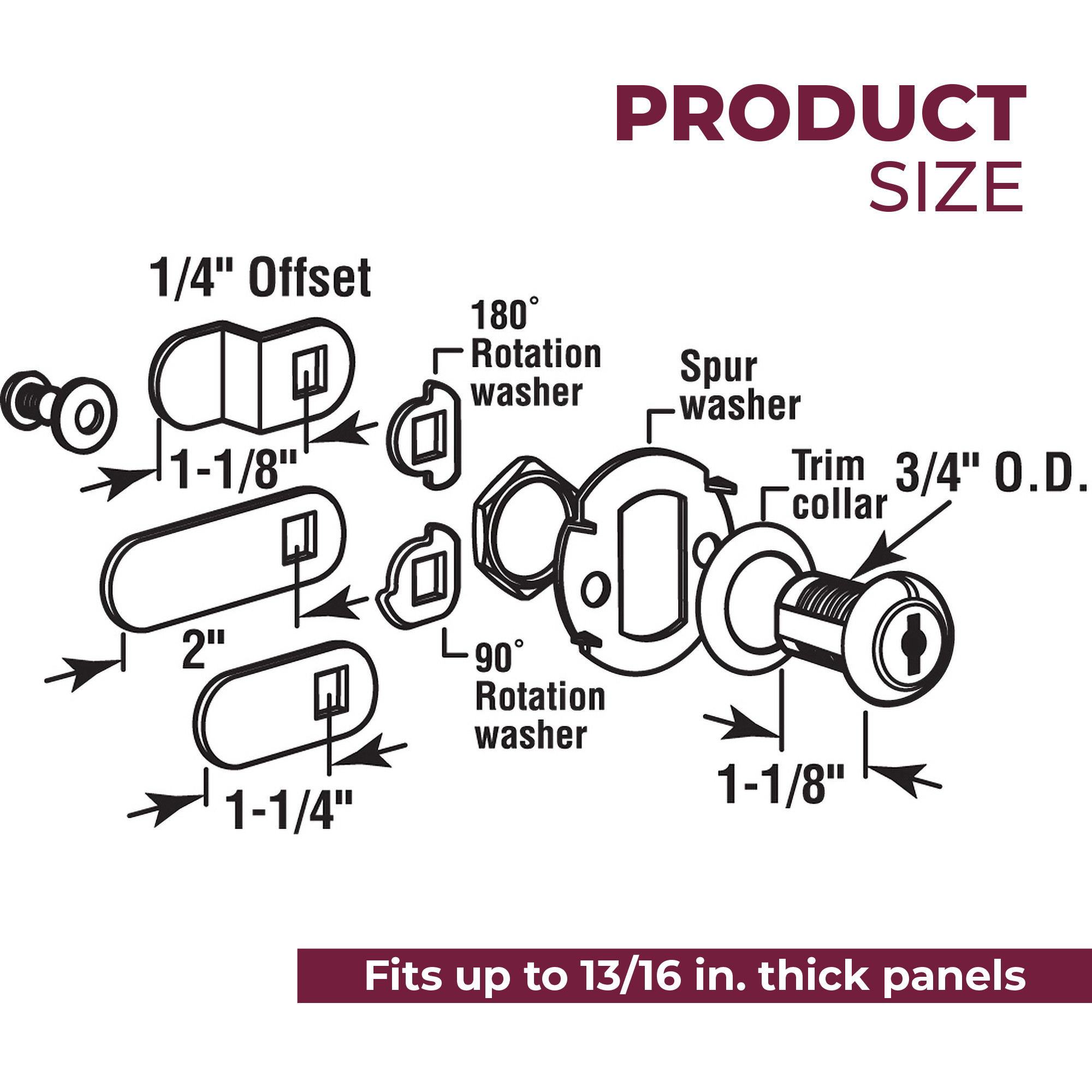

Body of this lock is 3/4 in. diameter with a face of 7/8 in. diameter
Please refer to the line art drawing for dimensions and compare with your needs before purchasing

[/SPECIFICATIONS]

[WARRANTY]

Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.

View Installation Instructions

[/WARRANTY]

2e:T4b1, [PRODUCT_DESCRIPTION] This drawer and cabinet lock is constructed of diecast and steel components and it comes in a stainless steel finish. Features a 3/4 in. outside cylinder diameter with a 1-1/8 in. length that will accommodate up to 13/16 in. thick panels. This drawer and cabinet lo

13/16 in. Drawer and Cabinet Lock, Chrome Finish, Keyed Different (Single Pack)

13/16 in. Drawer and Cabinet Lock, Chrome Finish, Keyed Different (Single Pack)

Product Details

Specifications

Warranties & Manuals

FAQ

What does keyed alike mean?

What does keyed different mean?

What is a cam? How does it work?

What is the bore hole size?

How do you mount the cabinet lock?

How do I choose the right cabinet lock size?

Do cabinet locks work on metal and wood cabinets?

Can it be used outside?

Can it be rekeyed?
