1 in. Drawer and Cabinet Lock, Chrome Finish, Keyed Different (Single Pack)

SKU:

U 9950

$10.91
U 9950
U 9950 Alt 1
U 9950 Alt  2
U 9950 Alt 3
U 9950 Example
U 9950 Line Art
U 9950 Dimensions

1 in. Drawer and Cabinet Lock, Chrome Finish, Keyed Different (Single Pack)

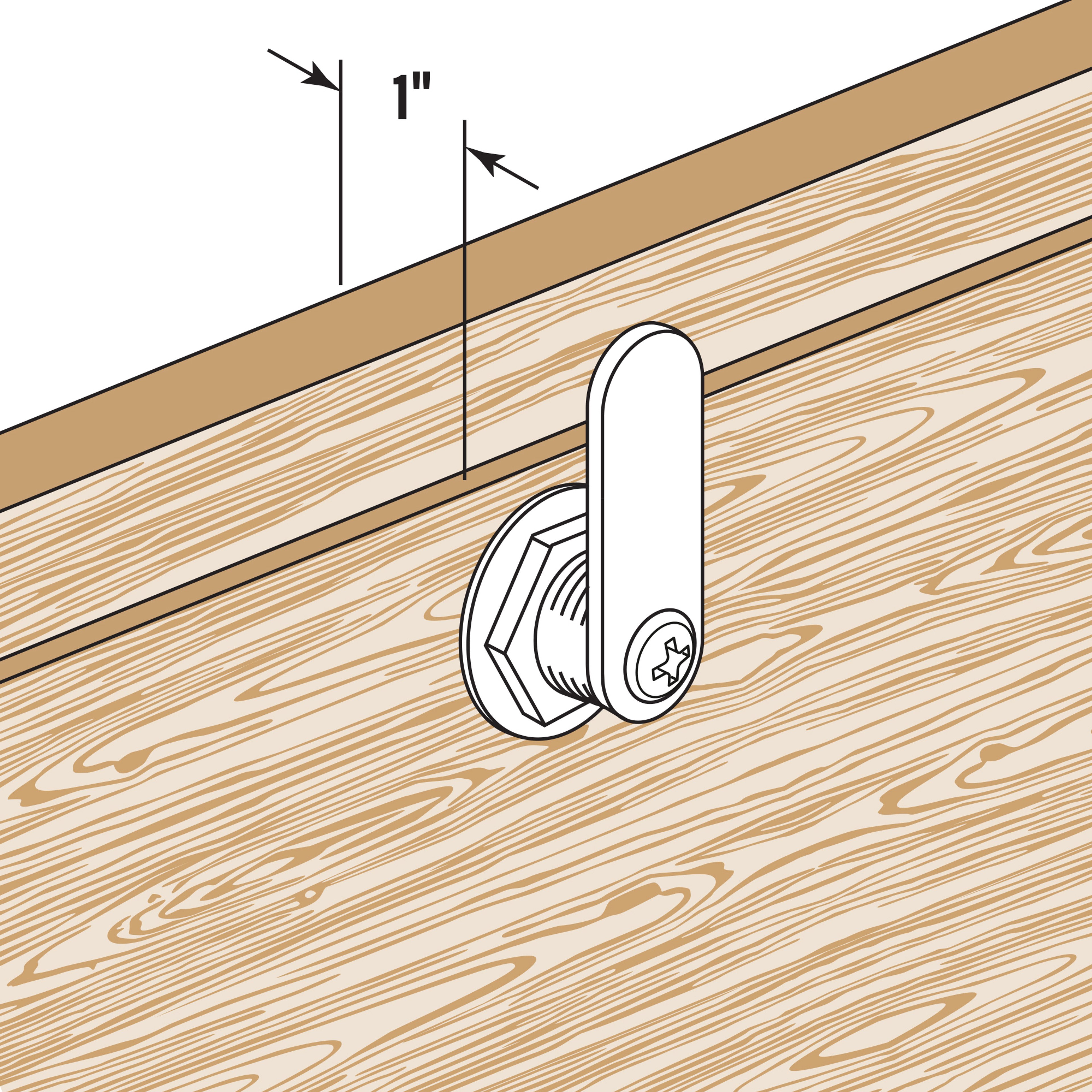

  • Used to secure cabinet doors and drawers up to 1 in. thick

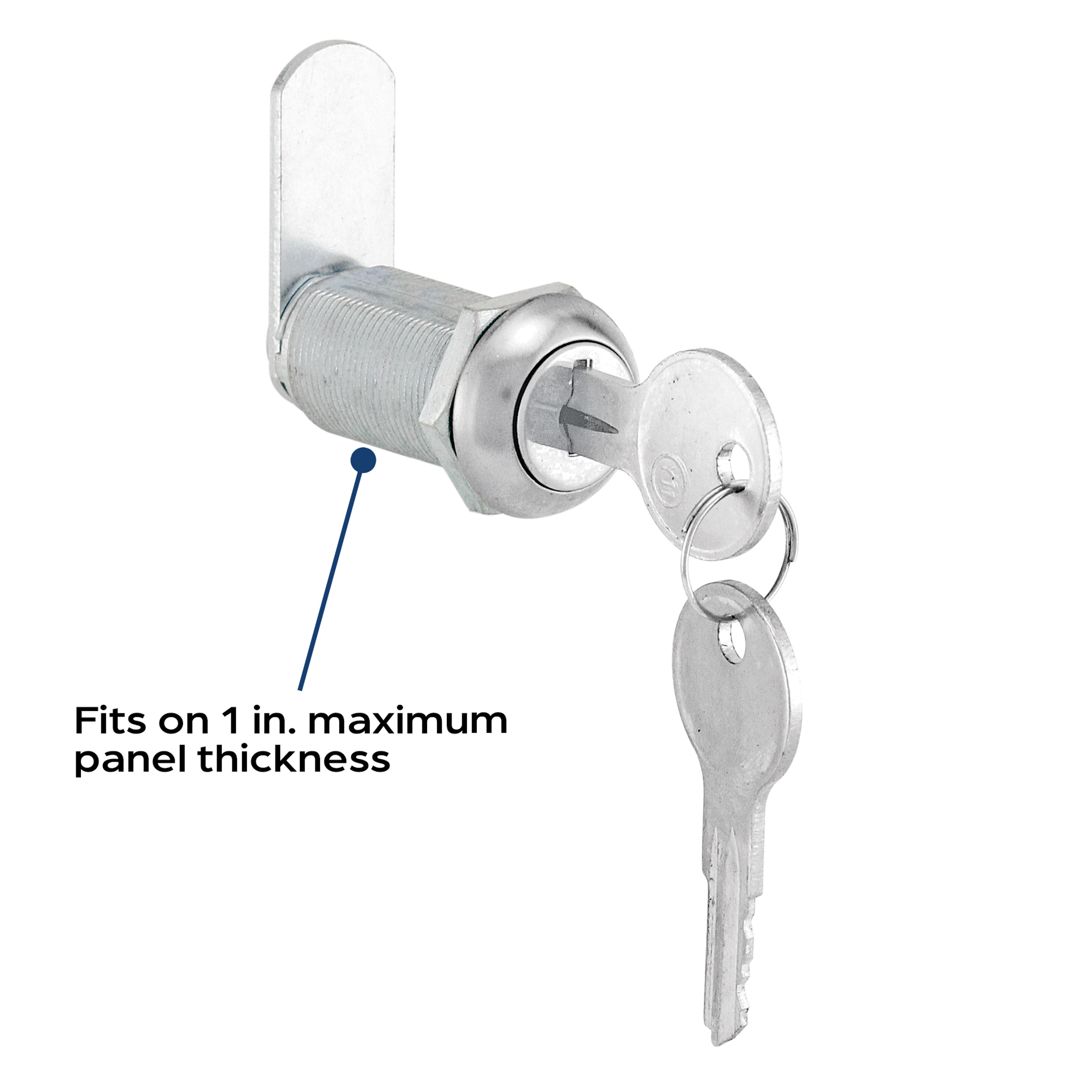

  • 3/4 in. outside diameter x 1-3/8 in. long cylinder. Fits on 1 in. maximum panel thickness
  • Can be special ordered to be keyed the same
  • View Details

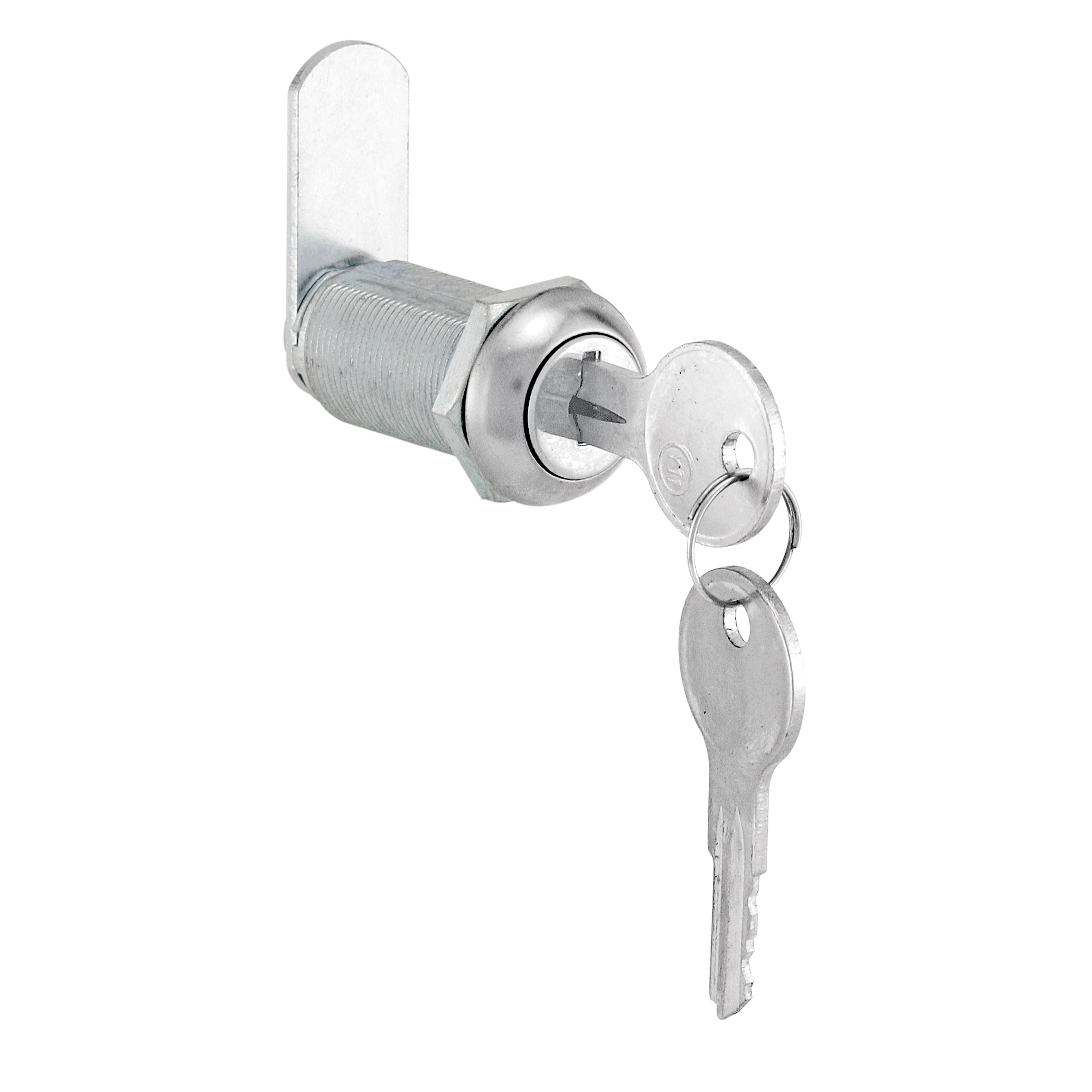

This drawer and cabinet lock is constructed of diecast and steel components and it comes in a stainless steel finish. Features a 3/4 in. outside cylinder diameter with a 1-3/8 in. length that will accommodate up to 1 in. thick panels. Can be mounted to metal or wood; door and/or drawer panels, and it comes complete with 3 cams, a trim collar, 2 reversible rotation washers, 2 keys and fasteners. These are keyed different and it uses Yale Y-11 keyway. Others have used these to replace damaged locks in work truck tool boxes and gumball machines.

  • Durable diecast and steel construction with a stainless steel finish
  • All hardware included for installation

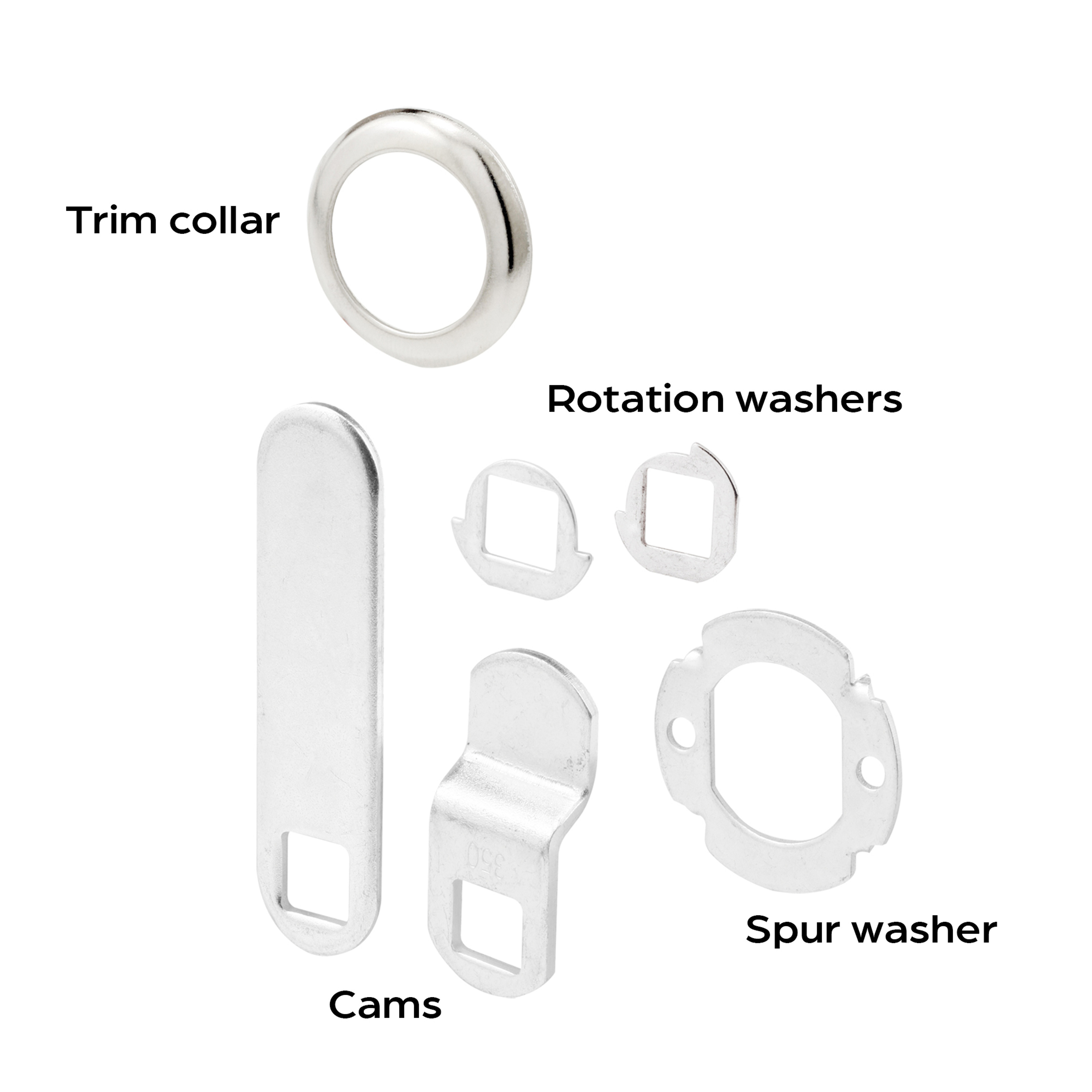

  • Contains 1 lock, 3 cams, 1 trim collar, 1 spur washer, 2 rotation washers, 1 lock nut and 2 keys
  • Body of this lock is 1-3/8 in. diameter with a face of 7/8 in. diameter

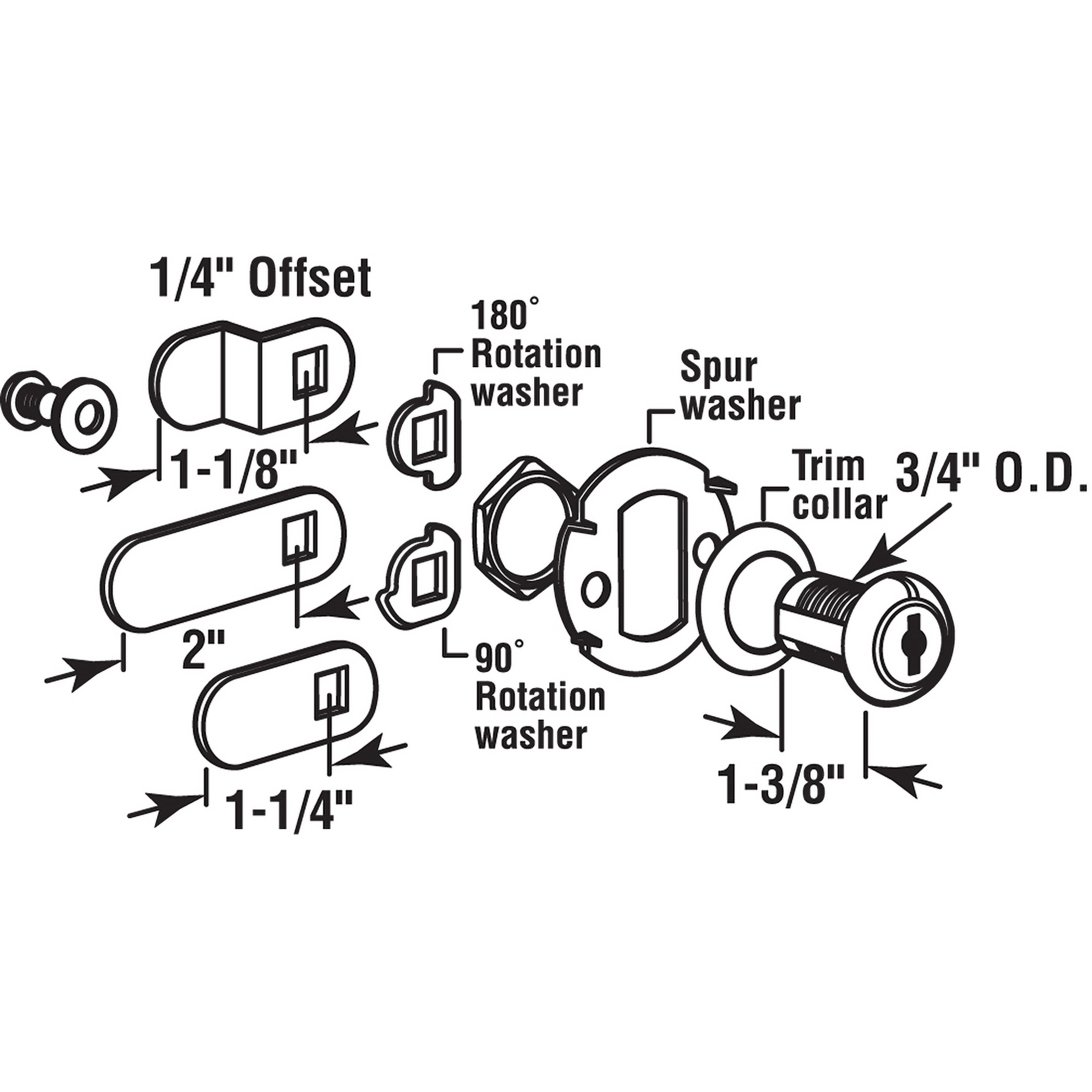

  • Please refer to the line art drawing for dimensions and compare with your needs before purchasing

Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.



View Installation Instructions
