[PRODUCT_DESCRIPTION]

This is a right-handed single arm operator with a bronze finish. It is often found on older steel windows as well as other styles. On the end of the arm is a stainless steel guide roller that rolls in the Prime-Line part TH 22825 casement operator track. The hardened steel arms, worm drive and gears are protected with a corrosive resistant finish. The arm with insert into a slot in the window frame to engage the track. Mounting holes are 3.876 in. and 4.75 in. on center.

[/PRODUCT_DESCRIPTION]

[SPECIFICATIONS]

Right hand (as viewed from the outside looking in)
Single arm operator
Uses Prime-Line part TH 22825 for the track (optional)
Disconnects easily from the sash

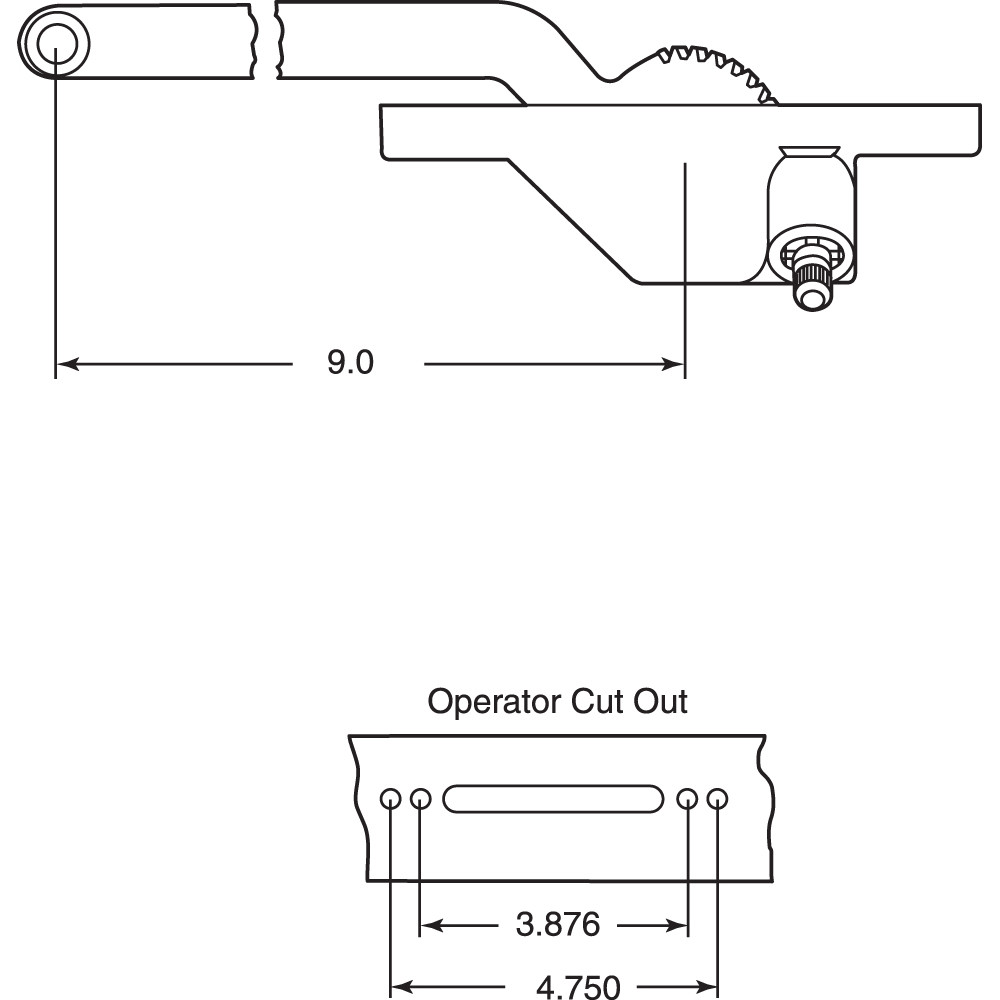

Please refer to the line art drawing for dimensions and compare with your needs before purchasing

[/SPECIFICATIONS]

[WARRANTY]

Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.

[/WARRANTY]

2e:T49a,[PRODUCT_DESCRIPTION] This is a right-handed single arm operator with a bronze finish. It is often found on older steel windows as well as other styles. On the end of the arm is a stainless steel guide roller that rolls in the Prime-Line part TH 22825 casement operator track. The hardened steel arms, worm drive and gears are protected with a corrosive resistant finish. The arm with insert into a slot in the window frame to engage the track. Mounting holes are 3.876 in. and 4.75 in. on center. [/PRODUCT_DESCRIPTION] [SPECIFICATIONS] Right hand (as viewed from the outside looking in) Single arm operator Uses Prime-Line part TH 22825 for the track (optional) Disconnects easily from the sash

Single Arm Operator, Right Hand, Bronze, Stainless Guide Roller, Crank Handle (Single Pack)

Single Arm Operator, Right Hand, Bronze, Stainless Guide Roller, Crank Handle (Single Pack)
